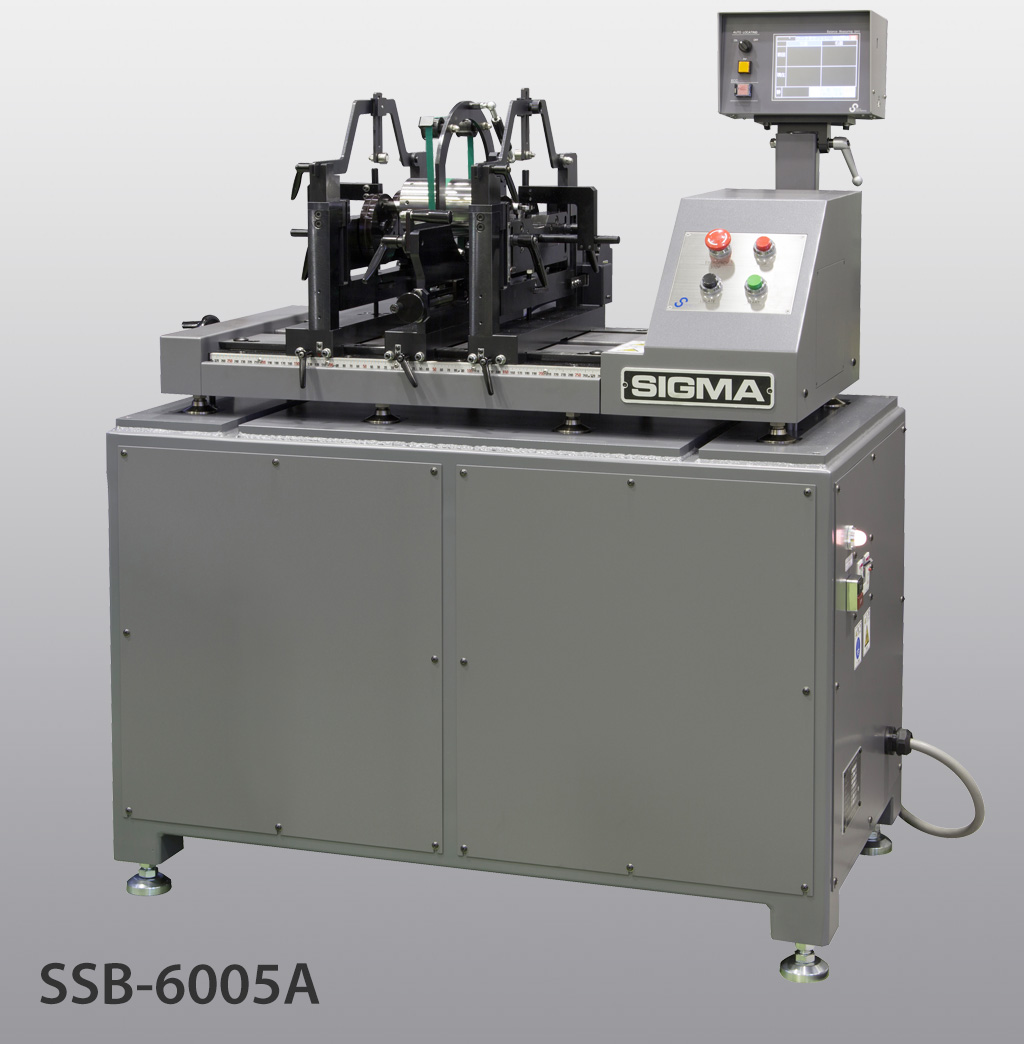

SSB-6005A

Horizontal 1 to 4 plane Balancing Machine
SSB-60001A

Mass of workpiece is up to 5kg. Suitable for high efficiency balancing of rotors with journals.

  • Balancing plane : 1 and 2 (up to 4 -optional)
  • Workpiece Mass : 5kg max.
  • Rotor dia.: ø150mm max.
  • Belt drive dia.: ø20 to 80mm
  • Journal dia. : ø8 to 50mm
  • Span across Bearings :50 to 350mm
  • Belt drive system :Upward-Tangential
  • Min. Achievable Unbalance :0.1 µm

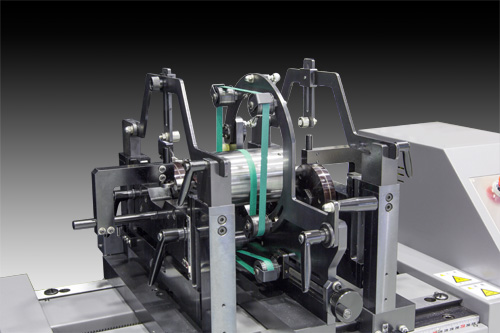

work

Spindle rotors, Motor armatures, Turbine rotors, Fans, Rolls, etc.

Features

  • Realize balancing of flexible rotors by "Multi-speed Multi-plane Balancing Algorithm"
  • Vibration at all rotational speed range can be defused by unique "Multi-speed Multi-plane Balancing Algorithm".

  • Selectable for driving system
  • Upward-Tangential, Downward-Tangential, Underslung

  • Expand measuring planes to 4 planes
  • Conventional balancing planes is up to 2 planes.
    However, in case performing 2-plane balancing of rotary part of high speed rotary machine, check structure and shape of rotary part and select proper No. of Correction plane. Otherwise, it may cause higher order vibration of flexural mode under high speed rotation.
    Sigma’s horizontal balancing machine expands No. of Correction plane until 4 planes at maximum, selecting proper No. of Correction plane freely. So the above mentioned problem can be solved easily.

  • Touch screen operation
  • Small foot print

Specifications: SSB-6005A

Model SSB-6005A
Workpiece Max. Mass 5kg
Max. rotor diameter ø150mm
Diameter for belt drive ø20 to ø80m
Journal diameter ø8 to ø50mm
Span across Bearings 50 to 350mm
Mechanical unit Belt drive system Upward-Tangential, Underslung, Downward-Tangential
Motor AC servo motor, 400W
Balancing speed 600 to 3,000min-1 (Depending on outer diameter of workpiece)
Bearing support system Soft type
Angle of unbalance index Automatic indexing
Between bearings method Roller bearing
Measuring unit Min. Achievable Unbalance 0.1 µm
Balancing plane 1 and 2 (up to 4 is available with option)
Graphic display 5.7" TFT color LCD with touch screen
Min. unbalance indication 0.01mg
Indication mode Multi-speed Multi-plane, Fix-speed Multi-plane
Polar coordinates and (3 to 36) components of unbalance vector
(add or remove of unbalance correction masses are selectable)
No. of stored work data 50 data (No limitation when use with USB memory)
Judgment of measured result Judgment with set limit value
Data transfer Measured data can be transferred to PC or stored USB memory -optional
Others Power supply 3-phase AC200V 50/60Hz
Dimensions 955(W) × 1,430(L) × 1,160(H)mm
Mass Approx. 300kg (Including base frame)
