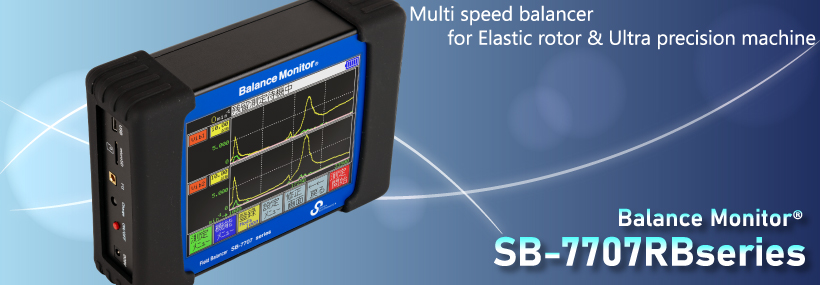

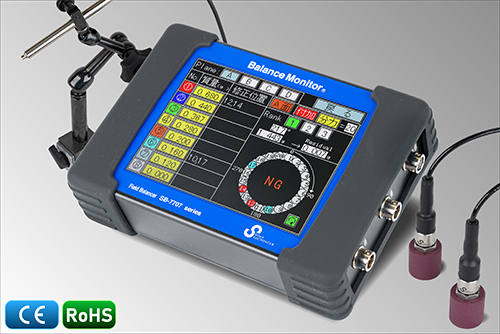

SB-7707RB series is the unique to defuse 3D(X,Y,Z) vibrations by “Multi-speed Multi-plane Balancing Algorithm” for preventing vibration at wide speed range of flexible rotor with higher order of bending modes.
•Rechargeable battery model is available.
•Variable-speed Spindle of Machining Center, Textile and spinning machines, Tapping center, etc.
•NC Lathe, High-speed Die Machinery, High-speed Slicer, Dicing Saw, Internal Grinder, Woodworking Machinery, Crusher, Blower, Pump, Compressor, etc.
•Most of precision grinder as Surface grinder, Forming grinder, Centerless grinder, Cylindrical grinder (-optional)
≪Balancing function≫
・Multi-speed balancing
・Fixed-speed balancing
・Grinder balancing *Optional
≪Analysis function≫
・Harmonic vibration analysis
・Unbalance vibration analysis
・Overall vibration analysis
・FFT and Bearing diagnosis
・Time waveform
Features
For balancing of flexible and rigid rotors.
•As increasing rotational speed and downsizing of machinery, relative stiffness becomes lower and lower. It causes critical speed will exist in operating speed range.
•Multi-speed multi-plane balancing method provides to defuse vibration at all operational rotating speed range.
Conventional constant speed balancing function is available.
The troublesome work of adjusting the mass of the correction weight is reduced new!
Uses up to 8 levels of correcting mass registered in advance to output the optimum component correction results.
Balancing process will become more efficient.
OK/NG judgment function according to JIS B 0905 new!
The measured value and the permissible value are compared and the OK/NG judgment is displayed.
Either the charge type or CCLD type can be selected for the vibration sensor new!
In addition to the conventional charge type vibration sensor, CCLD type vibration sensor can be selected.
In an environment where the cable is long and easy to sway, the CCLD type vibration sensor with less cable noise is suitable.
Compact and lightweight, convenient for business trips and carrying around in factories
•Battery-powered, continuous operation for 3 hours. (when sleep mode is enabled)
Easy to use & High accuracy
•Improved operability and vibration detection accuracy. (5 times that of our company)
•Save the screen as photo data to microSD.
•Equipped with overall vibrometer and FFT analyzer as standard equipment.
Unbalance correction by balance weights arrangement -optional
•Unbalance can be corrected by arranging 2 or 3 balance weights on the circumference. This method is popular for balancing of grinding wheels.
•If this method is applied to general industrial machinery, balance correction will be easily done only by rearrangement of balance weights, weight selection and/or fabrication is not needed.
•SB-7707RB series can be applied 1 plane(G) or 2 plane(GW) balancing.
Options
•Unbalance correction by balance weights arrangement
•Vibration Sensor for multi-plane measurement
-Choice of two types of attached sensors-

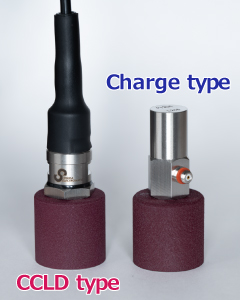

The small size of the charge type allows it to be installed in relatively confined spaces.
The CCLD type is resistant to noise caused by cable swings and bends, which is especially advantageous in environments with long cables.
Please select according to your application.
USB Interface
•USB mini-B connector
•microSD card slot
Instrument and all accessories are stored in an attaché case
Weight: 4.4kg
Operating Flowchart
SB-7707RB Specification
| 【Measurable rotaion speed：Normal】 【Measurable rotaion speed：High speed】 【Measurable rotaion speed：Super high speed】 【Measurable rotaion speed：Low speed】 | |
|---|---|
| Model | SB-7707RRHRSRLB-2 |
| 【Measuring range】 | |
| Applicable Rotors | Rigid Rotor, Flexible rotor, Grinding wheel |
| Balancing Speed(Fixed-speed) | 180min–1 to 61,000min–1 180min–1 to 120,000min–1 180min–1 to 240,000min–1 60min–1 to 61,000min–1 |
| Balancing Speed(Multi-speed) | 600min–1 to 61,000min–1 600min–1 to 120,000min–1 600min–1 to 240,000min–1 600min–1 to 61,000min–1 |
| Resolution of rotational speed display | 1 min–1 |
| Resolution of vibration | 0.001µm |
| Number of vibration input channel | 2ch |
| Measuring method | Multi-speed measurement, Fixed-speed measurement |
| Number of correction plane | 1 to 4 (Multi-speed), 1 to 2 (Fixed-speed) |
| 【Correction method】 | |
| Polar coordinates | 0°〜359° (angle resolution：1°) |
| Components of unbalance vector | 3 to 50 |
| Correction weight | Add / Remove |
| 【Vibration analysis function】 | |
| Unbalance vibration analysis | Time-series record of unbalanced vibration vectors |
| Harmonic Vibration Analysis | Analysis of harmonic components |
| FFT analyzer | Frequency analysis function (Includes time waveform measurement function) |
| OverAll Vibrometer | Acc. Peak / Acc. RMS / Acc. C.F. / Vel. RMS / Disp. EQP (Meas. range Acc：0.1〜40m/s²) |
| OverAll Vibration monitor | Not equipped |
| 【Others】 | |
| USB communication port | mini-B (Data transfer to PC, Hard copy of screen) |
| microSD card slot | Standard equipped (Supports up to microSD HC) |
| Eccentricity correction function | Standard equipped |
| Measurement range switching | Automatic |
| Number of registered data stored | 2 |
| Display | 5.7 inch TFT color LCD (LED back light method) / Touch panel |
| Power supply |
Li-Ion battery(Operating time: 3 hours -sleep mode) AC adapter: AC 100 to 240V ±10% 50/60Hz |
| Environmental | Temperature: 10 to 40°C, Humidity: 20 to 80％RH (Non-condensing) |
| Dimensions of measuring unit | 187.5(W) × 53.5(D) × 130(H) mm |
| Mass of measuring unit | Approx. 0.8kg |
| Dimensions of storage trunk case | 385(W) × 120(D) × 255(H) mm |
| Total mass (Includes accessories) | Approx. 4.5kg |
| 【Accessories】 | |
| Vibration sensor |
*Choose 1 or 2 1) Charge output type sensor：P12SC Sensitivity：10pC/(m/s²) Cable：LN-041-025 (2.5m straight) Fix magnet：KM-025C (Adsorption：100N) 2) CCLD output type sensor：SA-02 Sensitivity：10mV/(m/s²) Cable：Sensor integrated type (2.5m straight) Fix magnet：KM-025C（Adsorption：100N) |
| Low-speed Displacement Sensor |
V10L Sensitivity：0.5mV/µm Fix magnet：MB-B (Adsorption:800N) Cable：Low-speed Displacement Sensor Cable (2.5m) Note:Low-speed Displacement Sensor (type V10L) can be used only for low speed balancing. The sensors cannot be used for general vibration measurement purpose other than balancing. |
| Rotation sensor |
SFS-N41（2.0m cable assembled） Fix magnet：NF2021（Adsorption：320N） Instruction manual included |
| AC adapter |
Japan：UN312-5920 (DC5.9V, 2A) Plug type:Type-A outside Japan：UI318-06 (DC6V, 2.8A) Plug type:Type-A (AC code conversion method*) *AC cords other than Type A must be provided by the customer. |
| Circular protractor | 822-0001 (ø15cm) |
| Manual | CD-ROM, Digest booklet |
| 【Option】 | |
| Unbalance correction | Balance weights arrangement for grinding wheel (G：1-plane, GW：2-planes) |
| Additional sensor for multi-point measurement |
Vibration sensor P12SC ＋ Vibration sensor cable LN-041-025 or Vibration sensor SA-02 |
