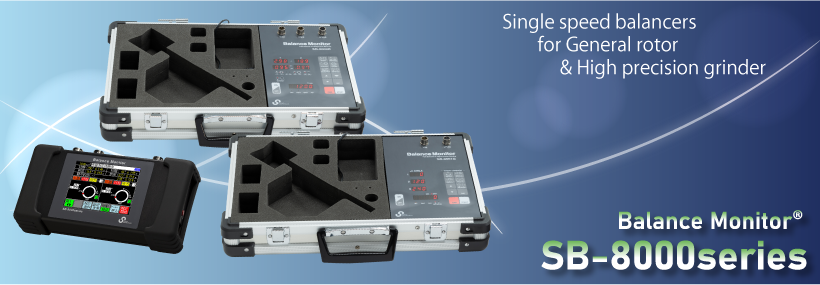

High cost performance model for general rotating machinery. SB-8000series are contributing the machinery firms for more than 20 years.
1.Integrated in attaché case
2.Display measured results and procedure on 7-seg. LED
3.Easy operation by dedicated sheet key
1.Integrated in attaché case
2.Display Measurement results of 2 planes on 7-seg LED
3.Easy operation by dedicated touch key
1.Ultra-compact handy type
2.Touch screen color LCD
3.Battery power can be used in factories or fields.
4.Balancing speed up to 61,000min–1
5.USBport, microSD card slot
1.Ultra-compact handy type
2.Battery power can be used in factories or fields.
3.Touch screen color LCD
4.USBport, microSD card slot
•NC Lathe, High-speed Die Machinery, High-speed Slicer, Dicing Saw, Internal Grinder, Woodworking Machinery, Crusher, Blower, Pump, Compressor, etc.
•Most of precision grinder as Surface grinder, Forming grinder, Centerless grinder, Cylindrical grinder (SB-8002RGB)
≪Balancing function≫
・Fixed-speed balancing
≪Analysis function≫ *Only 8002RB
・Harmonic vibration analysis
・Unbalance vibration analysis
Features
High accuracy and efficient 1 and 2 planes balancing
•Field balancing at a fixed rotational speed
•Resolution of 0.001μm at up to 61,000min–1
•Resolution of vibration is 0.001µm.
Display Measurement Results of 2 planes
•Measurement results and procedure on 7-seg. LED.(8002R)
•Touch screen color LED and help function provides easy operation.(8002RB)
•Measuring range is selected automatically.
Simple operation
•Dedicated touch key and large 7-seg LED provides easy operation.(8002R)
•Selectable method of Polar coordinates or Components of unbalance vector
•Measuring response is 2x fast.(Compared to Sigma’s products)
Balancing high-speed rotating machinery
•Multivariate analysis over 1,000min-1
Vibration analysis functions
•Unbalance vibration monitoring •Harmonic analysis
Documentation and archiving
•With our utility software, the measurement results can now be transferred directly onto your PC as CSV files and MS-Excel reports.(8002RB)
Unbalance correction by balance weights arrangement -optional
•Unbalance can be corrected by arranging 2 or 3 balance weights on the circumference. This method is popular for balancing of grinding wheels.
•If this method is applied to general industrial machinery, balance correction will be easily done only by rearrangement of balance weights, weight selection and/or fabrication is not needed.
•SB-8002RGB:can be applied 1 plane(G) balancing.

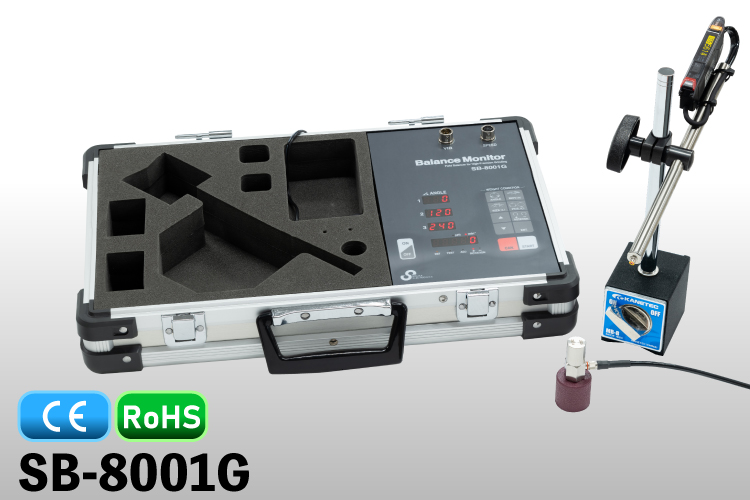

SB-8001G/SB-8002R:
Integrated in attaché case
Dimensions: 385(W)x120(L)×255(H)mm
Mass: Approx.5kg
SB-8001GB/SB-8002RB:
Instrument and all accessories are stored in an attaché case.
Dimensions: 385(W)x120(L)×255(H)mm
Mass: Approx.4.3kg
SB-8000 series Specifications
| 【SB-8001G】 【SB-8001GB】 【SB-8002R】 【SB-8002RB】 | |
|---|---|
| Model | SB-8001G8001GB8002R8002RB |
| 【Measurement range】 | |
| Applicable Rotors | Grinding wheel (Precision Grinder) Grinding wheel (Precision Grinder) Rigid Rotor Rigid Rotor, Grinding wheel(G:1-plane) |
| Balancing Speed | 180min–1 〜 10,000min–1 180min–1 〜 61,000min–1 180min–1 〜 61,000min–1 180min–1 〜 61,000min–1 |
| Resolution of rotational speed display | 1 min–1 |
| Resolution of vibration | 0.001µm |
| Number of vibration input channel | 1ch 1ch 2ch 2ch |
| Measuring method | Fixed-speed method |
| Number of correction plane | 1 1 1 to 2 1 to 2 |
| 【Correction method】 | |
| Polar coordinates | 0°〜359° (angle resolution：1°) |
| Components of unbalance vector | 3 to 50 |
| Correction weight | Add / Remove |
| Unbalance correction | Single plane balancing with arrangement of 2 or 3 balance weights on the circumference |
| Unbalance correction (option) | Single plane balancing with arrangement of 2 or 3 balance weights on the circumference |
| 【Vibration analysis function】 | |
| Unbalance Vibration Analysis | N/A Time-series record of unbalanced vibration vectors |
| Harmonic vibration analysis | N/A Analysis of harmonic components |
| FFT analyzer | N/A |
| OverAll Vibrometer | N/A |
| Time waveform | N/A |
| 【Others】 | |
| USB communication port | N/A mini-B (Data transfer to PC, Hard copy of screen) |
| microSD card slot | N/A Standard equipped (Supports up to microSD HC) |
| Display |
7-segment LED (Angle position, vibration displacement, revolution) LED lamp (Measurement condition, Operation display) 3.5" TFT color LCD Dialog with touch screen, with Touch pen |
| Language | Japanese Japanese / English switchable |
| Power supply |
AC adapter: AC100 to 240V ±10% 50/60Hz *When use at outside of Japan, use AC adapter with replaceable supply cable. Add suffix “E” for model name. Example; SB-8001GE Plug shape A type (Japanese specification) is included as standard. AC adapter: AC100 to 240V ±10% 50/60Hz Rechargeable battery: Li-Ion battery(Operating time: up to 3 hours) *When use at outside of Japan, use AC adapter with replaceable supply cable. Add suffix “E” for model name. Example; SB-8001GBE Plug shape A type (Japanese specification) is included as standard. AC adapter: AC100 to 240V ±10% 50/60Hz *When use at outside of Japan, use AC adapter with replaceable supply cable. Add suffix “E” for model name. Example; SB-8002RE Plug shape A type (Japanese specification) is included as standard. AC adapter: AC100 to 240V ±10% 50/60Hz Rechargeable battery: Li-Ion battery(Operating time: up to 3 hours) *When use at outside of Japan, use AC adapter with replaceable supply cable. Add suffix “E” for model name. Example; SB-8002RBE Plug shape A type (Japanese specification) is included as standard. |
| Environment | Temperature：5〜40°, Humidity：20〜80％RH（Non-condensing） Temperature：10〜30°C, Humidity：20〜80％RH（Non-condensing） |
| Dimension of measuring unit | 385（W）× 120（D）× 255（H）mm（integrated in trank case） 180（W）× 100（D）× 45（H）mm |
| Mass of measuring unit | Approx. 4.3kg（with main unit and all accessories） Approx. 5.0kg（with main unit and all accessories） Approx. 0.35kg |
| Dimension of trank case | 385（W）× 120（D）× 255（H）mm |
| Total mass (with main unit and all accessories) | Approx. 4.3kg |
| 【Accessories】 | |
| Vibration sensor |
P12SC Sensitivity：10pC/（m/s²） Cable：LN-041-025（2.5m straight） Fix magnet：KM-025C（Adsorption：100N） |
| Rotation sensor |
SFS-N41F（2.0m cable assembled） Fix magnet：MB-B（Adsorption：800N） Instruction manual included SFS-N41（2.0m cable assembled） Fix magnet：NF2021（Adsorption：320N） Instruction manual included |
| AC adapter |
Japan：UI312-1210 (DC12V, 1A) Plug shape：A outside Japan：UNI312-1210 (DC12V, 1A) Plug shape：A (AC code conversion method*) *AC cords other than Type A must be provided by the customer. Japan：UN312-5920 (DC5.9V, 2A) Plug shape：A outside Japan：UI318-06 (DC6V, 2.8A) Plug shape：A (AC code conversion method*) *AC cords other than Type A must be provided by the customer. |
| Circular protractor | 822-0001 (ø15cm) |
| Manual | CD-ROM |
| 【Option】 | |
| Unbalance correction | Balance weights arrangement for grinding wheel (8002RGB: 1-plane) |
| V magnet for vibration sensor | NF0037 |
| Extension cable for vibration and rotation sensor | 2.5ｍ, 5ｍ, 10ｍ, 20ｍ, 30ｍ |
| Option for 2-planes correction |
Vibration sensor P12SC ＋ Vibration sensor cable LN-041-025 *This option is required for 2-plane correction. |
