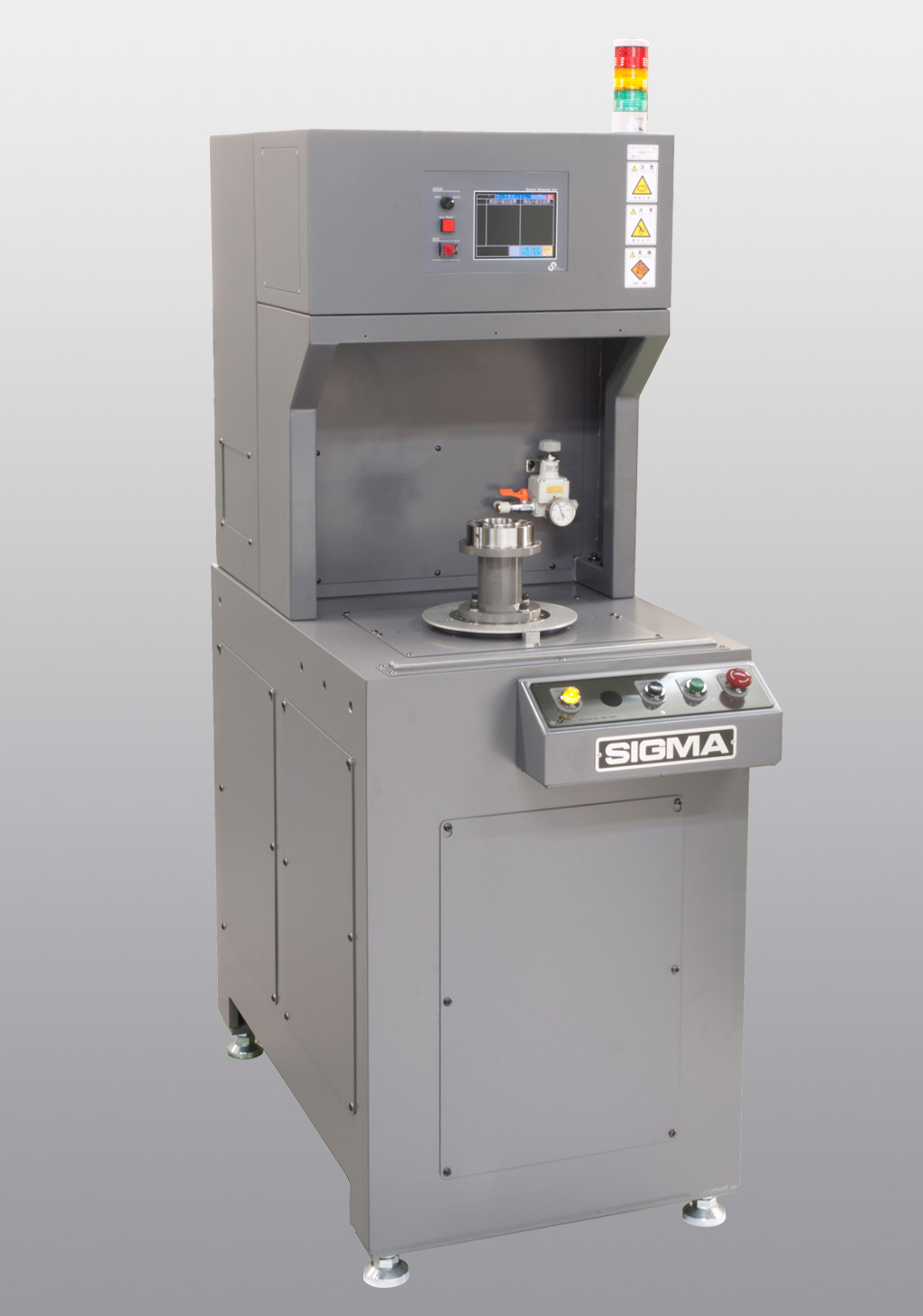

Vertical 1-plane balancing machine
SHV-5105A
SHV-5105A is designed for spindles of machine tool etc. High efficiency unbalance measurement is available.
- Balancing plane : 1 plane
- Workpiece Mass : 5.0kg max.
- Rotor dia.: ø150mm max.
- Chucking adapter : Manual fitting with screws
- Balancing Speed : 1,000 to 2,000min-1
- Min. Achievable Unbalance :1.0 μm

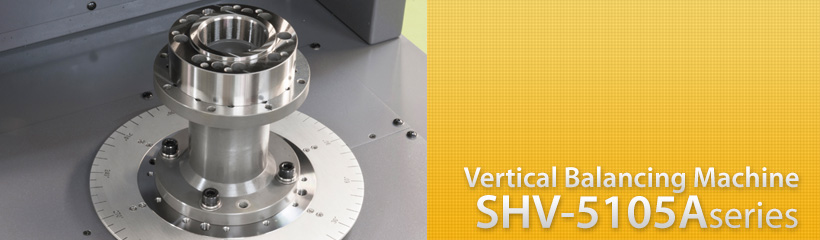

Precision parts of spindle, Fans, Pulleys, Gears, Rotary brushes, etc.
Features
- Wide range of shaft diameter
- Touch screen operation
- Data transfer
- Small foot print
Various shaft diameters can be used by replacing adapter.
Measured data can be transferred to PC by USB cable
Specifications: SHV-5105A
| Model | SHV-5105A | |
|---|---|---|
| Workpiece | Max. Mass | 5kg |
| Max. diameter | ø150mm | |
| Mechanical unit | Motor | AC servo motor, 1.0kW |
| Chucking adapter | Manual fitting with screws | |
| Balancing speed | 1,000 to 2,000min-1 | |
| Bearing support system | Hard type | |
| Measuring unit | Balancing plane | 1 plane |
| Min. Achievable Unbalance | 1.0µm | |
| Graphic display | 5.7" TFT color LCD with touch screen | |
| Min. unbalance indication | 0.01g | |
| Indication mode | Polar coordinates and (3 to 99) components of unbalance vector (add or remove of unbalance correction masses are selectable) |
|
| No. of stored work data | 50 data (No limitation when use with USB memory) | |
| Judgment of measured result | Judgment with set limit value | |
| Data transfer | Measured data can be transferred to PC by USB cable | |
| Others | Power supply | 3 phase 200V ±10% |
| Dimensions | 550(W) × 970(L) × 1,681(H)mm | |
| Mass | Approx. 480kg | |
