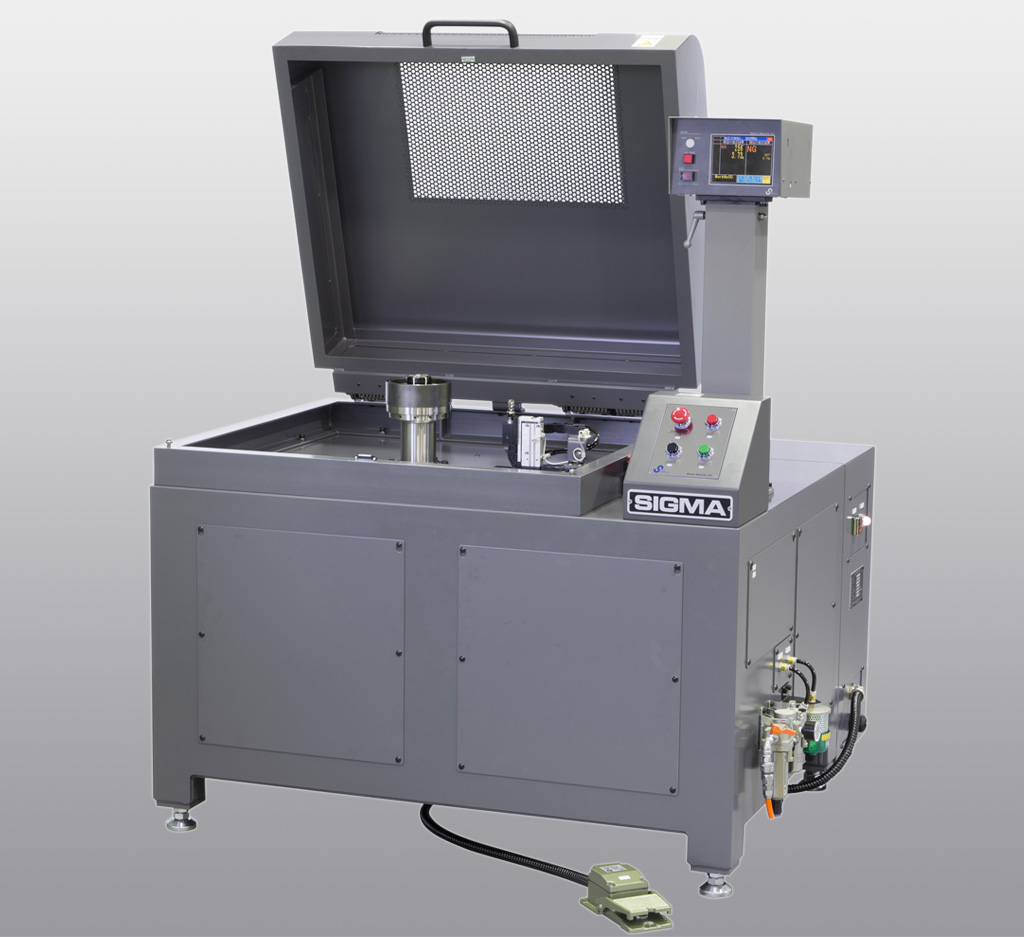

Vertical 1-plane balancing machine
SHV-5130A

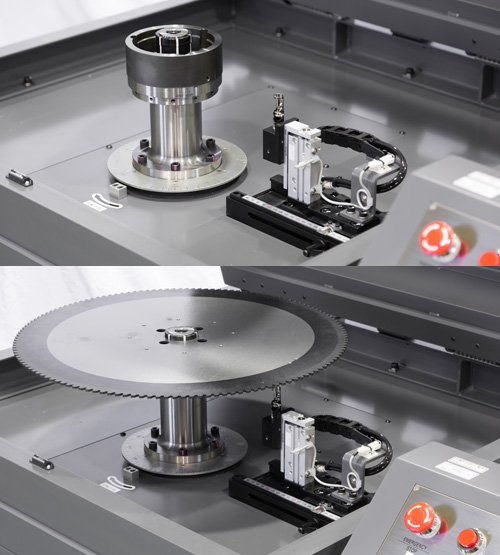

SHV-5130A can measure precisely large Disc-shaped rotors up to ø800mm max.
- Balancing plane : 1 plane
- Workpiece Mass : 30kg max.
- Rotor dia.: ø800mm max.
- Chucking adapter : Collet chuck
- Balancing Speed : 500 to 1,500min-1
- Min. Achievable Unbalance :0.5 μm
Disc-shaped rotors, Chip saw, Grinder, Pulley, Flywheel, etc.
Features
- Measuring large rotors
- Data transfer
- Small foot print
Measure precisely large Disc-shaped rotors up to ø800mm, 30kg
Measured data can be transferred to PC by USB cable
Specifications: SHV-5130A
| Model | SHV-5130A | |
|---|---|---|
| Workpiece | Max. Mass | 30.0kg |
| Max. Diameter | ø800mm | |
| Mechanical unit | Motor | AC servo motor, 400W |
| Chucking adapter | Collet chuck | |
| Balancing speed | 500min-1 to 1,500min-1 | |
| Bearing support system | Semi-hard type *Calibration by test weight is necessary . | |
| Angle of unbalance index | Automatic indexing of spindle | |
| Safety Cover | Manual up an d down door (with torque hinge, interlock) -optional | |
| Marking unit | Stamping marker by sir cylinder -optional | |
| Vibration sensor | Optical contactless displacement sensor | |
| Rotation sensor | Fiber sensor | |
| Measuring unit | Balancing plane | 1 plane |
| Balancing method | Fixed-speed measuring | |
| Eccentricity correction | Included | |
| Min. Achievable Unbalance | 0.5µm (test piece: 30kg) | |
| Graphic display | 5.7" TFT color LCD with touch screen | |
| Min. unbalance indication | Correction: 0.01mg *selecting from mg, g, kg Unbalance: 0.01mg•mm *selecting from mm,cm |
|
| Indication mode | Polar coordinates and (3 to 24) components of unbalance vector | |
| No. of stored work data | 50 data | |
| Judgment of measured result | Judgment with set limit value | |
| Data transfer | Measured data can be transferred to PC by USB cable | |
| Others | Power supply | 3 phase 200V ±10% |
| Dimensions | 1,307(W) × 1,310(L) x 1,489(H)mm | |
| Mass | Approx. 970kg | |
