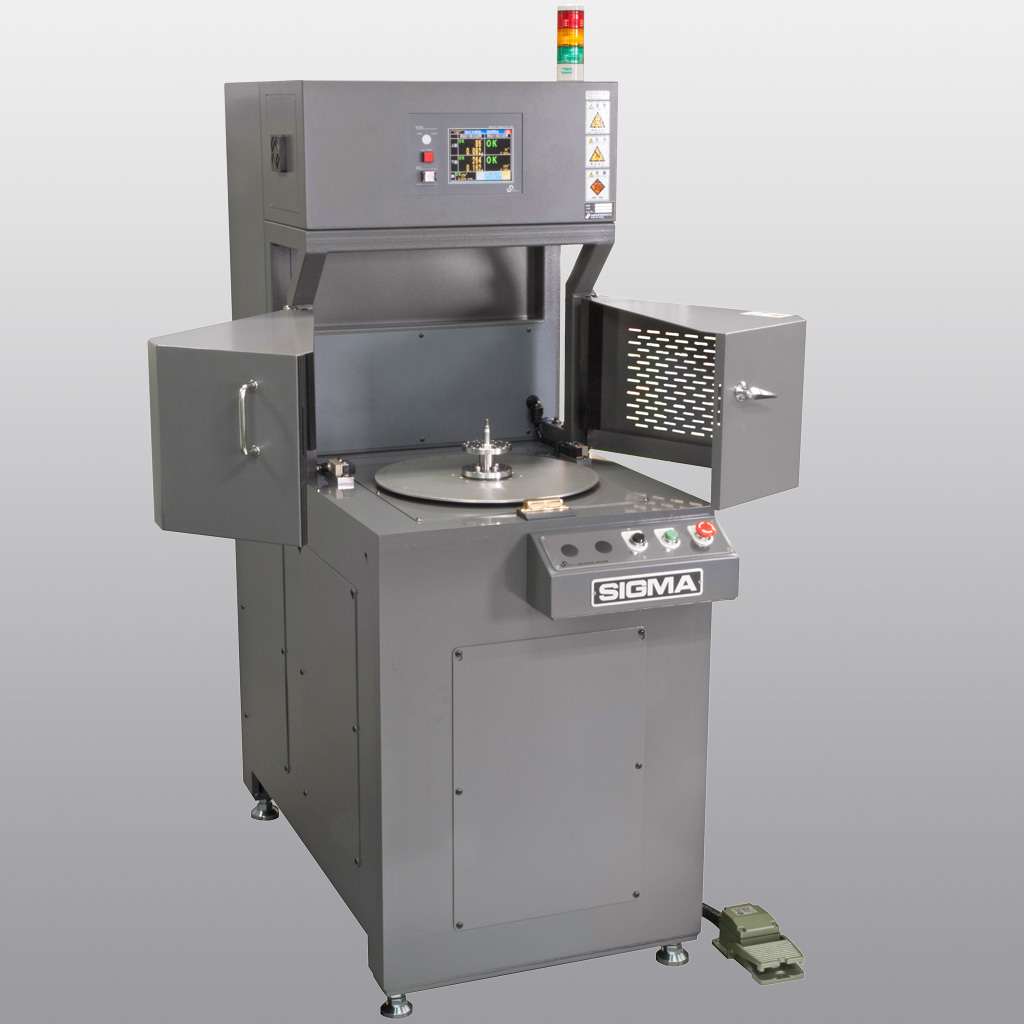

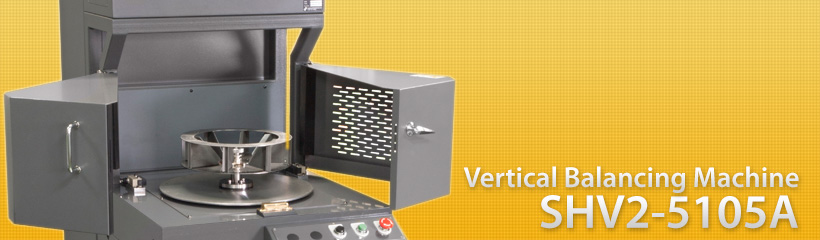

Vertical 2-plane balancing machine
SHV2-5105A
SHV2-5105A is designed for spindles of machine tool etc. High efficiency unbalance measurement is available.
- Balancing plane : 2 planes
- Workpiece Mass : 5.0kg max.
- Rotor dia.: ø50mm max.
- Journal dia.: ø10mm and ø50mm
- Chucking adapter : Manual fitting with nuts with key
- Balancing Speed : 500 to 1,500min-1
- Min. Achievable Unbalance :1.0 μm

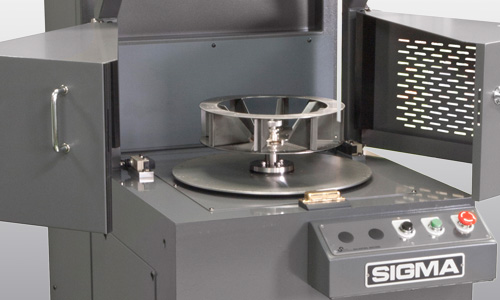

Turbo fan, Sirocco fan, Propeller fan, Cross fan, etc.
Features
- Balancing in 1 or 2 planes
- Touch screen operation
- Data transfer
- Small foot print
Measured data can be transferred to PC by USB cable
Specifications: SHV2-5105A
| Model | SHV2-5105A | |
|---|---|---|
| Workpiece | Max. Mass | 5.0kg |
| Max. diameter | ø500mm | Mechanical unit | Motor | AC servo motor with brake, 3kW |
| Chucking adapter | Manual fitting with nuts with key | |
| Balancing speed | 500 to 1,500min-1 | |
| Bearing support system | Semi-hard type | |
| Safety Cover | Double swing door with LS -optional | |
| Vibration sensor | Optical contactless displacement sensor | |
| Measuring unit | Balancing plane | 1 and 2 planes |
| Balancing method | Fixed-speed measuring | |
| Eccentricity correction | Included | |
| Min. Achievable Unbalance | 1.0µm (test piece mass: 5.0kg) | |
| Graphic display | 5.7" TFT color LCD with touch screen | |
| Min. unbalance indication | Correction: 0.01mg *selecting from mg, g, kg Unbalance: 0.01mg•mm *selecting from mm,cm |
|
| Indication mode | Polar coordinates and (3 to 24) components of unbalance vector (add or remove of unbalance correction masses are selectable) |
|
| No. of stored work data | 50 data (No limitation when use with USB memory) | |
| Judgment of measured result | Judgment with set limit value | |
| Data transfer | Measured data can be transferred to PC by USB cable | |
| Others | Power supply | 3 phase 200V ±10% |
| Dimensions | 600(W) × 1,100(L) × 1,680(H)mm | |
| Mass | Approx. 500kg | |
