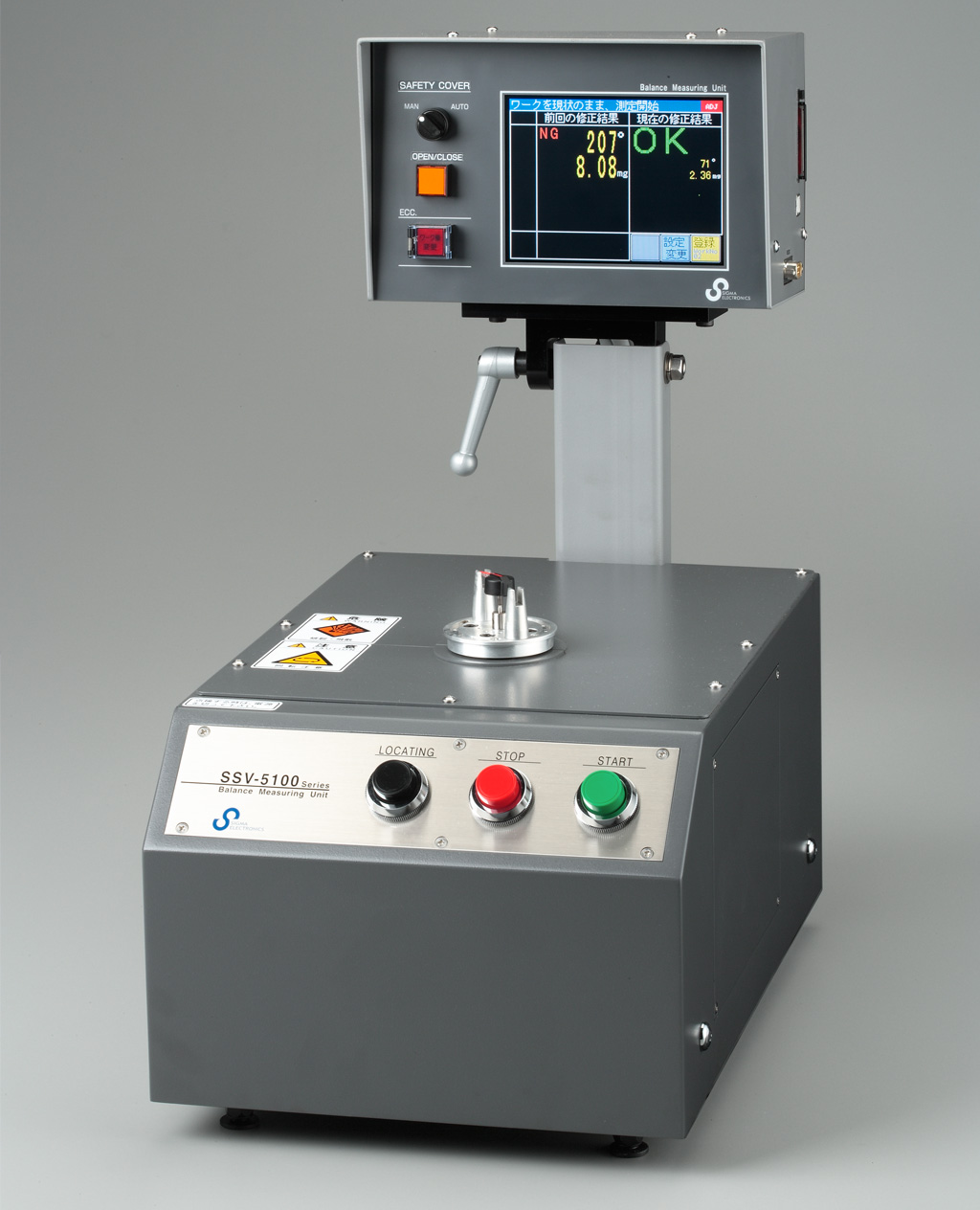

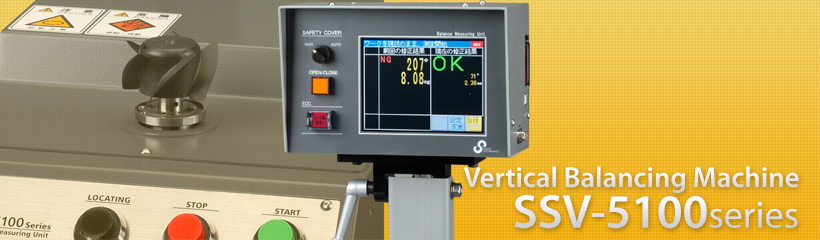

Vertical 1-plane Balancing Machine
SSV-510001
High accuracy and small size are realized by reasonable design review.
Performs balancing of light mass workpiece accurately such as meter pointer needle or hard disk drive.
- Balancing plane : 1 plane
- Workpiece Mass : 100g max.
- Rotor dia.: ø100mm max.
- Chucking adapter : Locating pin holes
- Balancing Speed : 1,500 to 3,500min-1
- Min. Achievable Unbalance :0.5 μm
Pointer needle of meters, CD/DVD disks, Head stacks of HDD etc.
Features
- Easy eccentricity compensation operation
- Touch screen operation
- Compact design
Specification: SSV-5100series
| Model | SSV-51001 | |
|---|---|---|
| Workpiece | Max. Mass | 100 g |
| Max. Diameter | ø100mm | |
| Mechanical unit | Motor | AC servo motor, 30W |
| Chucking Adapter | Locating pin holes |
|
| Balancing speed | 1,500 to 3,000 min-1 | |
| Bearing support system | Soft type | |
| Angle of unbalance index | Automatic indexing of spindle | |
| Measuring unit | Balancing plane | 1 plane |
| Eccentricity correction | Included | |
| Min. Achievable Unbalance | 0.5µm | |
| Graphic display | 5.7" TFT color LCD with touch screen |
|
| Min. unbalance indication | 0.001mg | |
| Indication mode | Polar coordinates and (3 to 99) components of unbalance vector (add or remove of unbalance correction masses are selectable) |
|
| No. of stored work data | 50 data (No limitation when use with USB memory) | |
| Judgment of measured result | Judgment with set limit value | |
| Data transfer | Measured data can be transferred to PC or stored USB memory -optional | |
| Others | Power supply | Single-phase AC100V |
| Dimensions | 260(W) x 445(L) x 490(H)mm | |
| Mass | Approx. 30kg | |
