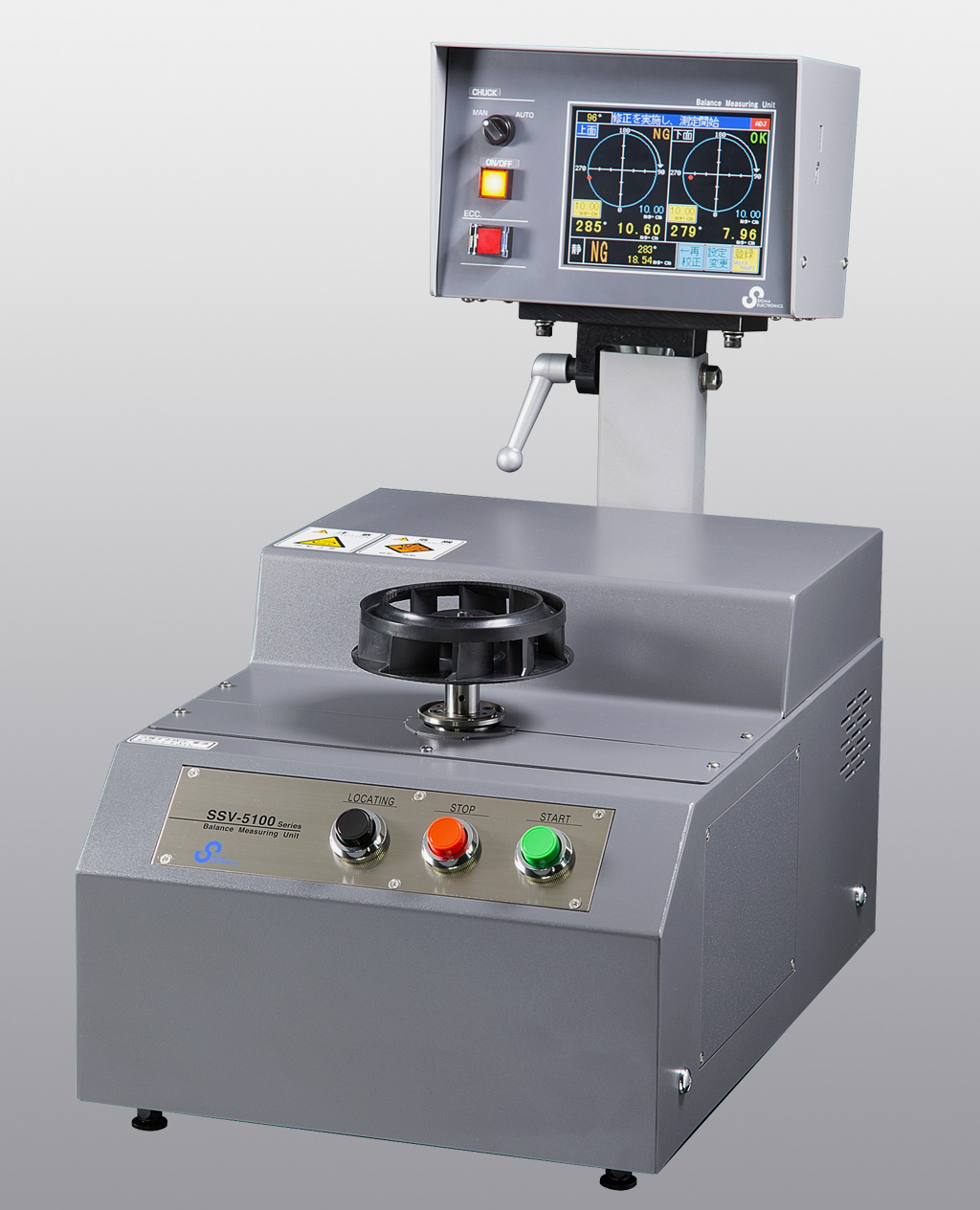

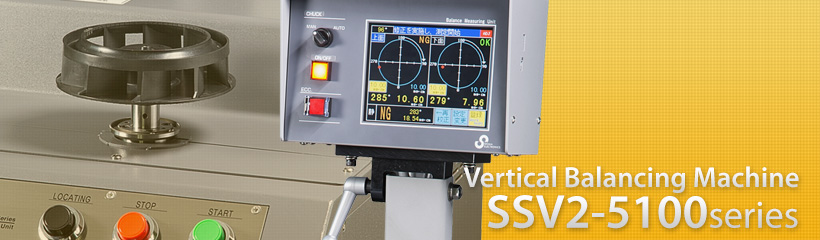

Vertical 1-plane/2-plane Balancing Machine
SSV2-5100series
Vertical 2 plane balancing machine that performs to balance 2 plane unbalances of precision parts such as high speed fan.
A collet chuck is used to fix workpiece.
- Balancing plane : 1 or 2 plane
- Workpiece Mass : 100g/400g max.
- Rotor dia.: ø150mm max.
- Journal dia.: ø1 to 6mm
- Chucking adapter : Collet chuck
- Balancing Speed : 1,500 to 3,500min-1
- Min. Achievable Unbalance :1.0 μm
Impellers of fan, pulleys, gears, precision flanges, etc.
features
- Balancing in 1 or 2 planes
- Adapting various rotors with Collet chuck
- Touch screen operation
- Compact design
Specification: SSV2-5100series
| Model | SSV2-51001A-CC | SSV2-51004A-CC | |
|---|---|---|---|
| Workpiece | Max. Mass | 100 g | 400 g |
| Max. Diameter | ø100mm | ø150mm | |
| Journal diameter | ø1.0 to 4.0mm (Replaceable adapter) | ø4.0 to 6.0mm (Replaceable adapter) | |
| Mechanical unit | Motor | AC servo motor, 100W |
|
| Chucking Adapter | Air Collet Chuck | ||
| Balancing speed | 1,500 to 3,500 min-1 | ||
| Bearing support system | Soft type | ||
| Angle of unbalance index | Automatic indexing of spindle | ||
| Measuring unit | Balancing plane | 1 or 2 planes | |
| Eccentricity correction | Included | ||
| Min. Achievable Unbalance | 1.0 µm | ||
| Graphic display | 5.7" TFT color LCD with touch screen |
||
| Min. unbalance indication | 0.001mg | ||
| Indication mode | Polar coordinates and (3 to 99) components of unbalance vector (add or remove of unbalance correction masses are selectable) |
||
| No. of stored work data | 50 data (No limitation when use with USB memory) | ||
| Judgment of measured result | Judgment with set limit value | ||
| Data transfer | Measured data can be transferred to PC or stored USB memory -optional | ||
| Others | Power supply | Single-phase AC100V | |
| Dimensions | 318(W) × 624(L) × 522(H)mm | ||
| Mass | Approx.47kg | ||
