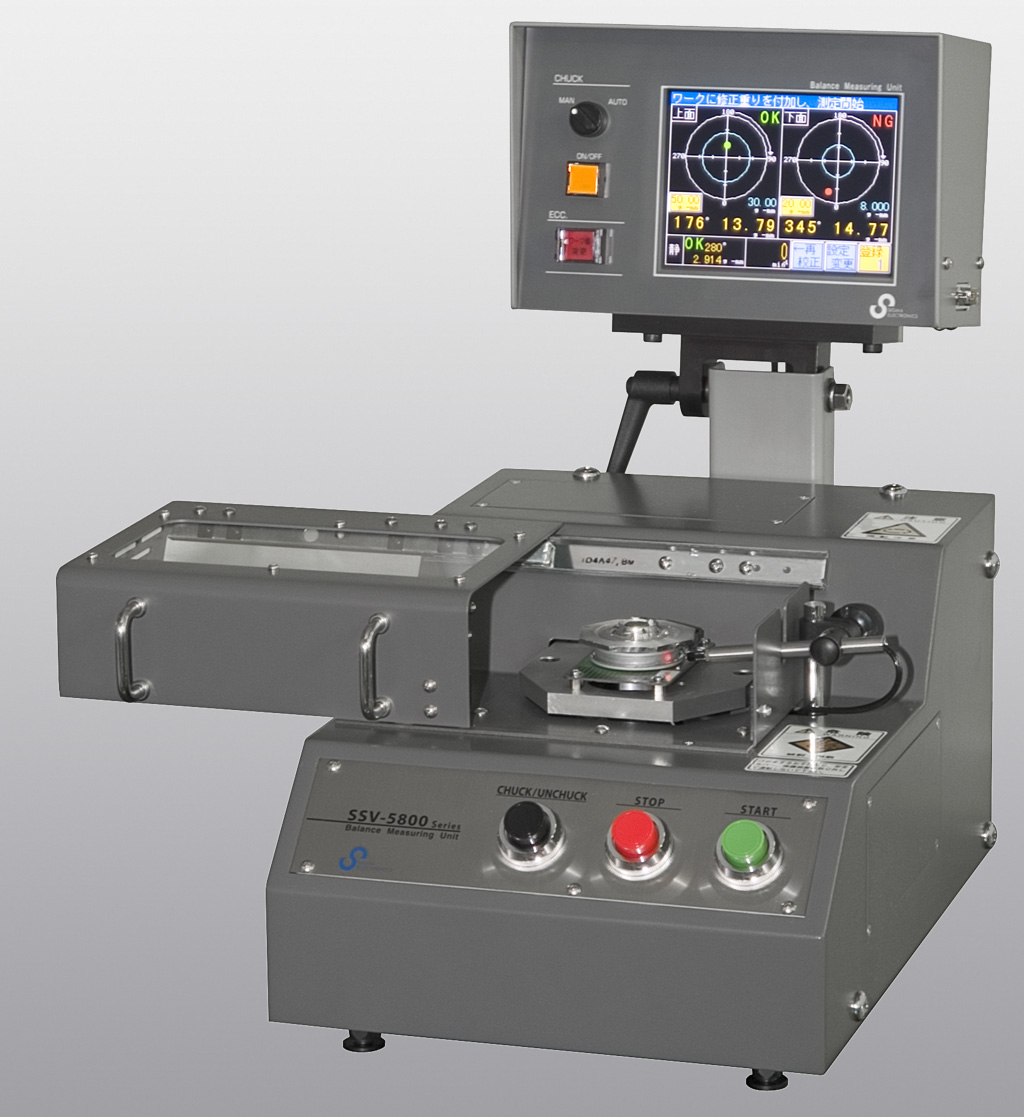

Vertical 2-plane Balancing Machine for self-driven work
SSV2-5800series
Very high accuracy and small size are realized by reasonable design review.
Performs balancing of light mass workpiece accurately precision rotors such as Polygon millers or HDD spindle motors.
- Balancing plane : 1 and 2 planes
- Workpiece Mass : 100g/400g max.
- Rotor dia.: ø100mm max.

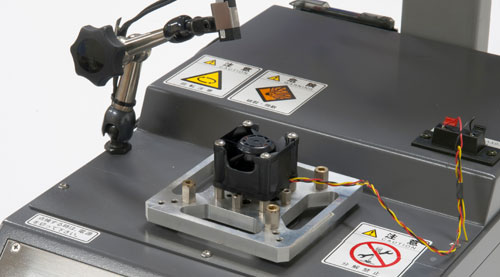

- Chucking adapter : Locating pin holes
- Balancing Speed : 120,000min-1 max.
- Min. Achievable Unbalance :Depend on bearing performance of workpiece
Polygon mirror motors, HDD spindle motors, etc.
Features
- Shorten measuring time to a quater
- Touch screen operation
- Double operation mode
- Compact design
High speed measuring by simultaneous 2-plane balancing
Correcting mode and Analyzing mode
Specifications: SSV2-5800series
| Model | SSV2-58001A | SSV2-58004A | |||
|---|---|---|---|---|---|
| Workpiece | Max. Mass | 100 g | 400 g | ||
| Max. diameter | ø100mm | ||||
| Mount table size | 110mm × 100mm | ||||
| Mechanical unit | Balancing speed | 61,000min-1 | 120,000min-1 | 61,000min-1 | 120,000min-1 |
| Bearing support system | Soft type | ||||
| Measuring unit | Balancing plane | 1 and 2 planes | |||
| Eccentricity correction | Included | ||||
| Min. Achievable Unbalance | Depend on bearing performance of workpiece | ||||
| Graphic display | 5.7" TFT color LCD with touch screen |
||||
| Min. unbalance indication | 0.01mg | ||||
| Indication mode | Polar coordinates and (3 to 99) components of unbalance vector (add or remove of unbalance correction masses are selectable) |
||||
| No. of stored work data | 50 data (No limitation when use with USB memory) | ||||
| Data transfer | Measured data can be transferred to PC or stored USB memory -optional | ||||
| Others | Power supply | Single-phase AC100V | |||
| Dimensions | 260(W) × 450(L) × 430(H)mm | ||||
| Mass | Approx. 26kg | ||||
| Option | Printer | Micro-dot printer | |||
| Chuck | Pneumatic three-jaw chuck | ||||
| Special function | Measurable up to 400,000 min-1 | ||||
