Field balancer is a portable measuring device which accurately can measure the unbalance amount and angle of actually operating rotating machinery.

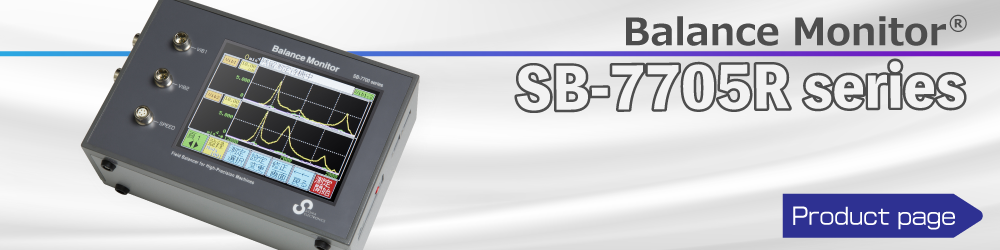

Conventional field balancing is performed at fixed rotational speed, and Sigma’s unique variable-speed balancing which prevents vibration at wide range of rotational speed (SB-7705series).
Sigma’s Field Balancers are adaptable very wide range of rotational speed with high accuracy. (low speed model down to 60min-1, ultra-high speed model up to 400,000min-1)

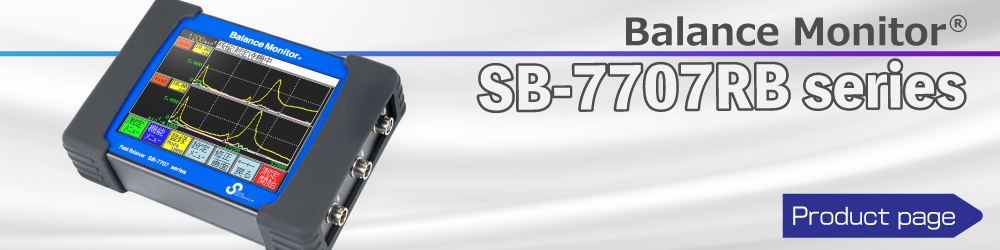

Field Balancer for flexible rotors, high-precision rotating machinery

•Multi-Speed Multi-Plane

applications

Variable-speed rotating machinery (MC, NC Lathe, etc.)
Woodworking machinery, Blower, etc.
Grinder(option)

Field Balancer for flexible rotors, high-precision rotating machinery

•Battery Powered
•Multi-Speed Multi-Plane

applications

Variable-speed rotating machinery (MC, NC Lathe, etc.)
Woodworking machinery, Blower, etc.
Grinder(option)

Field Balancer for general rotating machinery

•Compact size and low cost.

applications

Rotating machinery (NC Lathe, etc.).
Woodworking machinery, Blower, etc.
Grinder(option)

Field Balancer for general rotating machinery

•Battery Powered

applications

Rotating machinery (NC Lathe, etc.).
Woodworking machinery, Blower, etc.
Grinder(option)

Field Balancer for Ultra-high speed rotating machinery

•60min-1 to 400,000min-1
•Basic Configuration

applications

High-speed rotating machinery (NC Lathe, etc.)
Woodworking machinery, Blower, etc.
Grinder(option)

Field Balancer for general rotating machinery/Precision Grinder

•180min-1 to 61,000min-1
•High cost-performance

applications

Rotating machinery (NC Lathe, etc.)
Woodworking machinery, Blower, etc.
Grinder(SB8002RB)

Field Balancer for Precision Grinder

•Unbalance correction of the whole of grinding wheel including spindle

applications

Surface grinder, Forming grinder, Centerless grinder, Cylindrical grinder
