For cylindrical rotor that requires 2-plane balancing, horizontal balancing machine is the most suitable, because mounting of rotor is easy and simple. Sigma adopted the original algorithm to perform optimum accuracy with maximum 4-plane balancing. Well-designed belt drive system performs high production efficiency. We are producing and supplying the ideal “Horizontal Balancing Machines”.

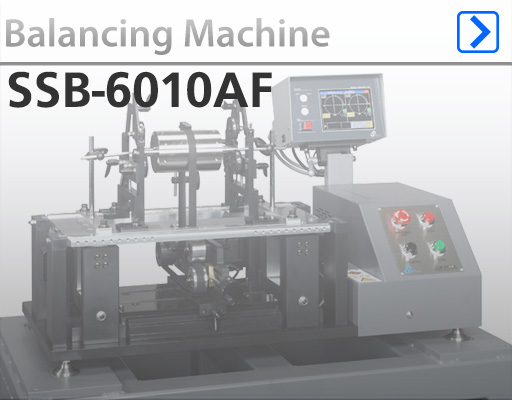

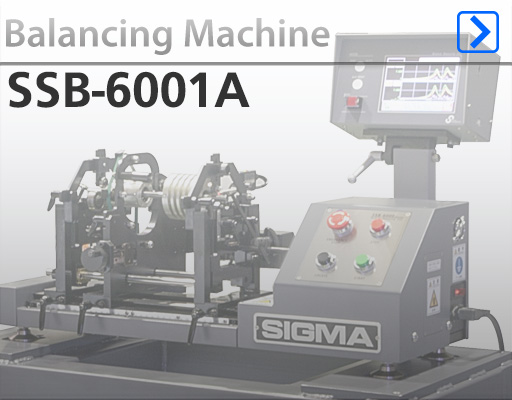

Horizontal Balancing Machine

2-Plane

Capacity : 0.1kg
Max. Rotor dia.: ø30mm
Belt drive dia.: ø3 to 20mm
Journal dia.: ø1 to 6mm
Bearing span:30 to 45mm
Belt drive :Underslung / Downward-Tangential

work

Small spindle rotors, Small motor armatures, Quills, etc.

4-Plane

Capacity : 1kg
Max. Rotor dia.: ø100mm
Belt drive dia.: ø10 to 50mm
Journal dia.: ø4 to 25mm
Bearing span :35 to 200mm
Belt drive:Upward-Tangential

work

Small spindle rotors, Motor armatures, Turbine rotors, Fans, Rolls, etc.

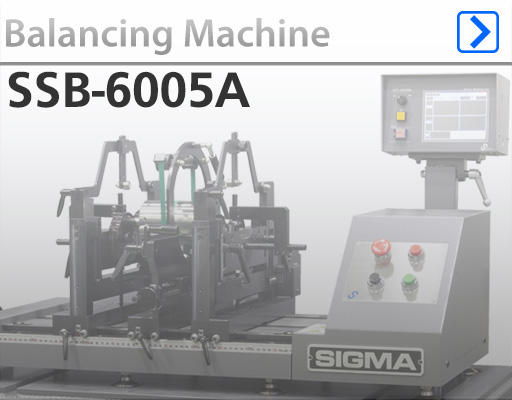

4-Plane

Capacity : 5kg
Max. Rotor dia.: ø150mm
Belt drive dia.: ø20 to 80mm
Journal dia : ø8 to 50mm
Bearing span:50 to 350mm
Belt drive:Upward-Tangential

work

Rotor shafts of spindle, Motor armatures, Turbine rotors, Fans, Rolls, etc.

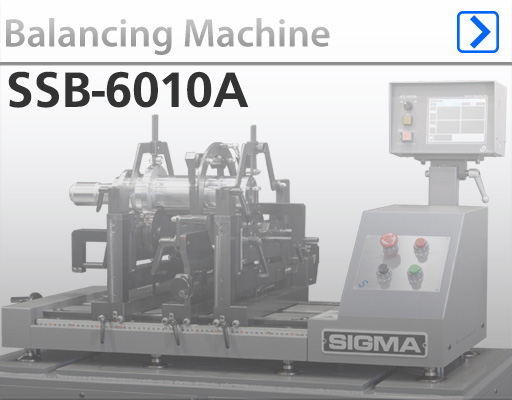

4-Plane

Capacity : 10kg
Max. Rotor dia.: ø150mm
Belt drive dia.: ø20 to 80mm
Journal dia. : ø10 to 50mm
Bearing span :50 to 350mm
Belt drive :Downward-Tangential

work

Rotor shafts of spindle, Motor armatures, Turbine rotors, Fans, Rolls, etc.

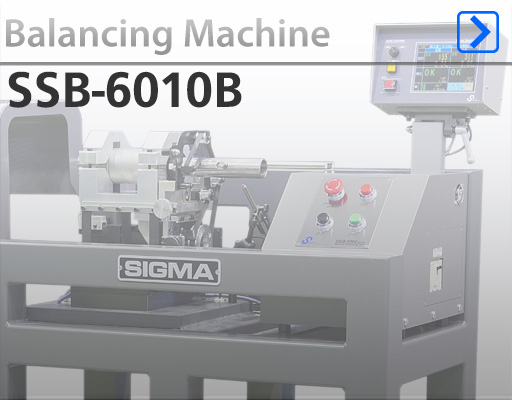

4-Plane

Capacity : 10kg
Max. Rotor dia.: ø150mm
Bearing span :160mm max.
Belt drive :Upward-Tangential

work

Rotor shafts of spindle, Turbine rotors of jet engine, etc.

4-Plane

Capacity : 10kg
Max. Rotor dia.: ø200mm
Belt drive dia.: ø20 to 80mm
Journal dia. : ø10 to 30mm
Bearing span :40 to 300mm
Belt drive :Underslung

work

Motor armatures, Turbine rotors, Multi-cylinder crankshafts, etc.

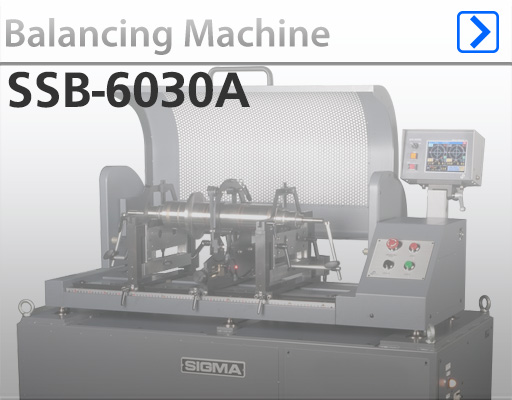

4-Plane

Capacity : 30kg
Max. Rotor dia.: ø250mm
Belt drive dia.: ø20 to 140mm
Journal dia. : ø15 to 70mm
Bearing span :150 to 600mm
Belt drive :Upward-Tangential

work

High speed spindles, Turbo blowers, Cross flow fan, Drive shafts etc.

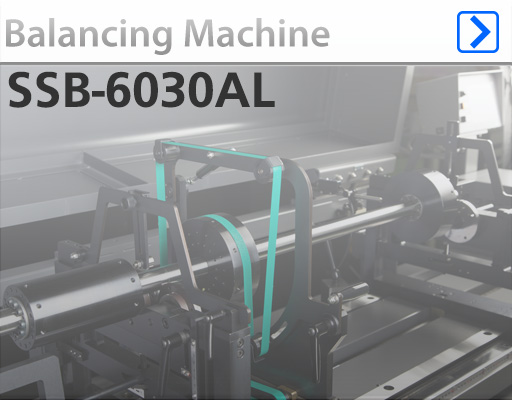

4-Plane

Capacity : 30kg
Max. Rotor dia.: ø250mm
Belt drive dia.: ø20 to 120mm
Journal dia. : ø15 to 70mm
Bearing span :150 to 1000mm
Belt drive :Upward-Tangential

work

Rotor shafts of spindle, Turbo blowers, Cross flow fan, Drive shafts etc.

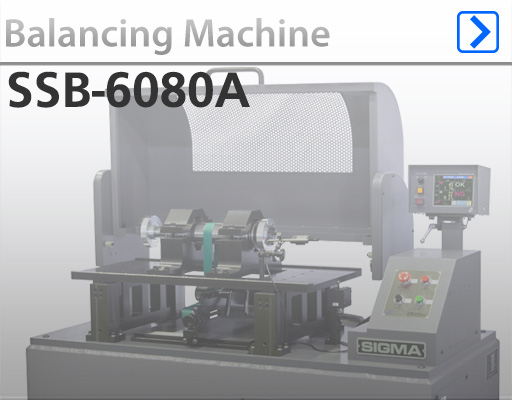

4-Plane

Capacity : 80kg
Max. Rotor dia.: ø195mm
Belt drive dia.: ø20 to 125mm
Bearing span :160 to 720mm
Belt drive :Underslung

work

Rotor shafts of spindle, Turbine rotors of jet engine, etc.

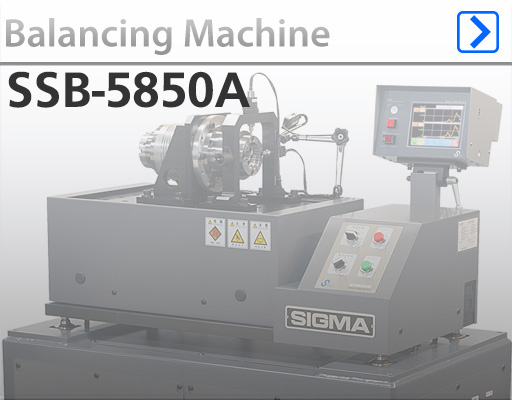

4-Plane

Measurement work : Self-driven high-precision spindle
Capacity : 50kg
Speed :180 to 120,000 min-1

work

Spindle assemblies, Motor assemblies, Turbo chager assemblies, etc.

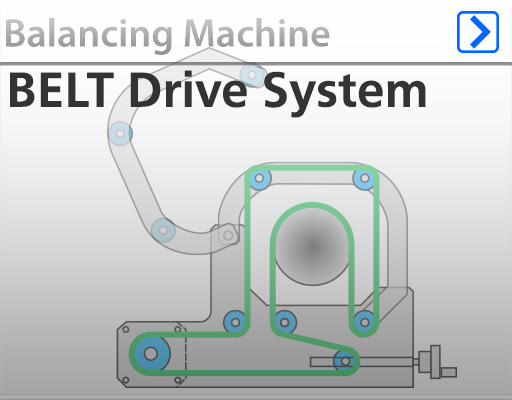

Belt Drive System

Belt Drive System

Upward-Tangential
Underslung
Downward-Tangential
