Sigma lineups highly accurate models that can perform balancing fitting for each work efficiently from “Vertical 1 plane Balancing Machine” for Meter indicator with only several gram until “Vertical 2 plane Balancing machine” for marine propeller over 50kg.

  1. Since setting of equal divided force and unequal divided force is freely possible, even correction and measurement of rotor with unbalance correction position limited, is easily possible.
  2. For calibration, by influence coefficient method easy operation. Zeromaster rotor is not needed.
  3. Since equipped with USB memory, number of Work data is unlimited.
  4. Since Eccentricity compensation is electrically and automatically performed, unbalance of rotor alone can be measured accurately.
  5. Since equipped with correction function for key or keyway, while measurement you need not remove Key.
  6. Press just "START" button, then automatically performs from measurement till displaying correction position.
  7. Based on set allowable value, every measurement of unbalance, "OK/NG" is judged and displayed.
  8. Possible to transfer measured data to PC. Printing is also possible by added Printer.
  9. For Display mode, there are Analysis mode and Measurement mode.

Vertical Balancing Machine

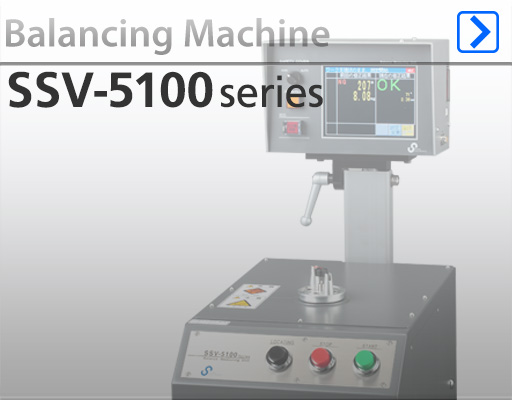

1-Plane

Capacity : 100g
Max. Rotor dia.: ø100mm
Adapter : Locating pin holes
Speed : 1,500 to 3,500min-1

work

Pointer needle of meters, CD/DVD disks, Head stacks of HDD etc.

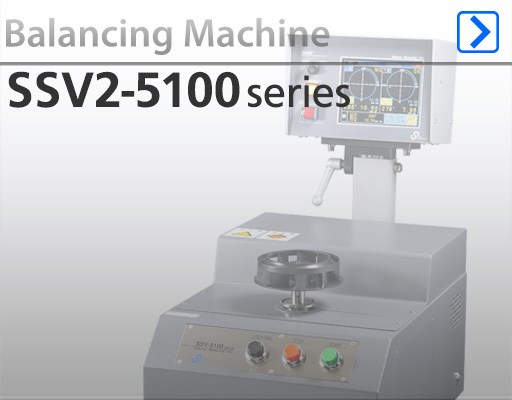

2-Plane with collet chuck

Capacity : 100/400g
Max. Rotor dia.: ø150mm
Adapter : Collet chuck
Speed : 1,500 to 3,500min-1

work

Impellers of fan, pulleys, gears, precision flanges, etc.

1-Plane 2-Spindle

Capacity : 3kg
Max. Rotor dia.: ø40mm
Adapter : Locating pin holes
Speed : 800 to 1,500min-1

work

Flywheel, Ring gear, Impellers of pump, Brake drum, pulley, etc.

Semi-auto 1-Plane with drill correction

Capacity : 3kg
Max. Rotor dia.: ø115mm
Adapter : Taper chuck
Speed : 800min-1

work

Magneto Rotor, Planetary carrier, Compressor blade, etc.

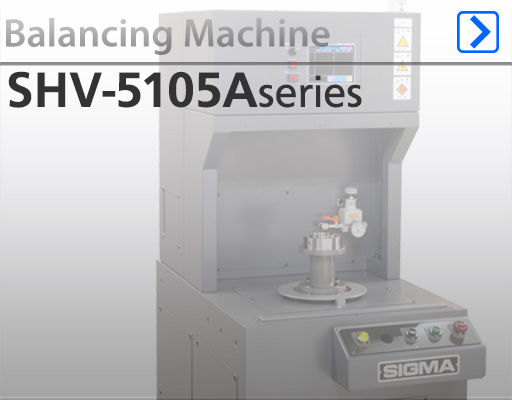

1-Plane

Capacity : 5kg
Max. Rotor dia.: ø150mm
Adapter :Manual fitting with screws
Speed : 1,000 to 2,000min-1

work

Precision parts of spindle, Fans, Pulleys, Gears, Rotary brushes, etc.

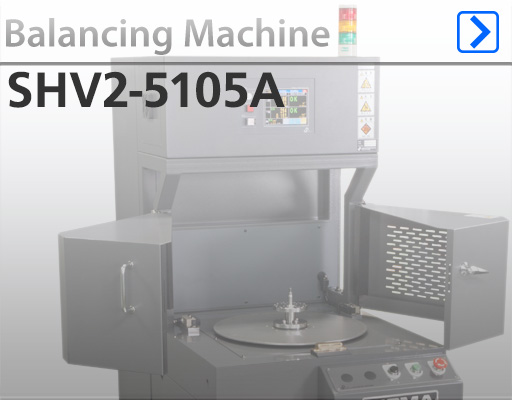

2-Plane

Capacity : 5kg
Max. Rotor dia.: ø500mm
Adapter :Manual fitting with nuts
Speed : 500 to 1,500min-1

work

Turbo fan, Sirocco fan, Propeller fan, Cross fan, etc.

1-Plane with drill correction

Capacity : 3/10/30kg
Max. Rotor dia.: ø200mm
Adapter : Pneumatic chuck
Speed : 600 to 1,500min-1

work

Flywheel, Ring gear, Impellers of pump, Brake drum, pulley, etc.

Semi-auto 1-Plane with drill correction

Capacity : 10kg
Max. Rotor dia.: ø350mm
Adapter : Collet chuck
Speed : 850min-1

work

Flywheel, pulley, Gear, etc.

Semi-auto 1-Plane with drill correction and unloader

Capacity : 10kg
Max. Rotor dia.: ø350mm
Adapter : Collet chuck
Speed : 850min-1

work

Flywheel, pulley, Gear, etc.

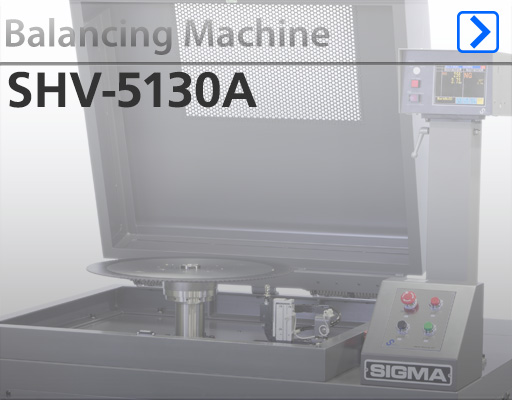

1-Plane

Capacity : 30kg
Max. Rotor dia.: ø800mm
Adapter : Collet chuck
Speed : 500 to 1,500min-1

work

Chip saw, grinder, pulley, Flywheel, etc.

Full-auto 1-Plane

Capacity : 30kg
Max. Rotor dia.: ø600mm
Adapter : Manual fixing
Speed : 800min-1

work

Pump impeller, Flywheels, etc..

Full-auto 2-Plane

Capacity : 30kg
Max. Rotor dia.: ø350mm
Adapter : Pneumatic chuck
Speed : 800min-1

work

Motor armatures for EV or HV, brake disks, Flywheel, etc.

Vertical Balancing Machine for self-driven work

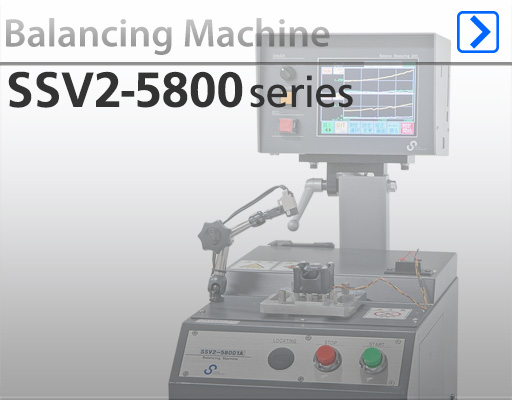

2-Plane for self-driven work

Capacity : 100g/400g
Max. Rotor dia.: ø100mm
Max. Speed : 120,000min-1

work

Polygon mirror motors, HDD spindle motors, etc.

2-Plane for large self-driven work

Capacity : 60kg
Max. Rotor dia.: ø500mm
Adapter : hinge bolt
Speed : 1,000 to 4,000min-1
Measuring method : Multi-speed balancing

work

Large size fans, etc..

Adapter

Adapter

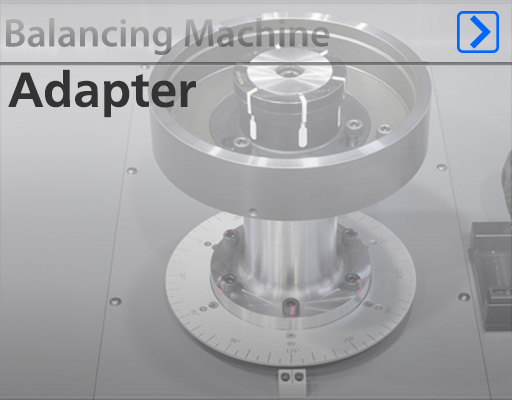

Holder to fix works to Balancing Machine. Various adapters according to shapes of works are available.
