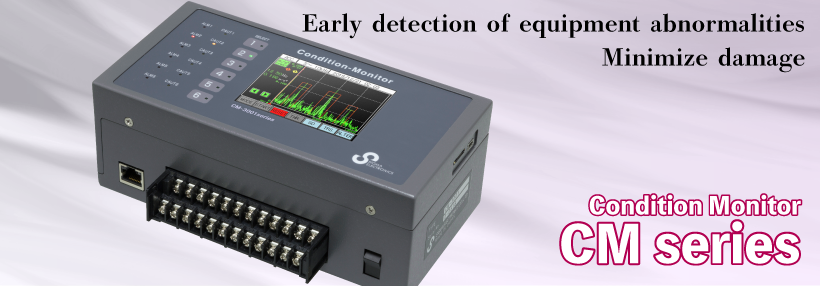

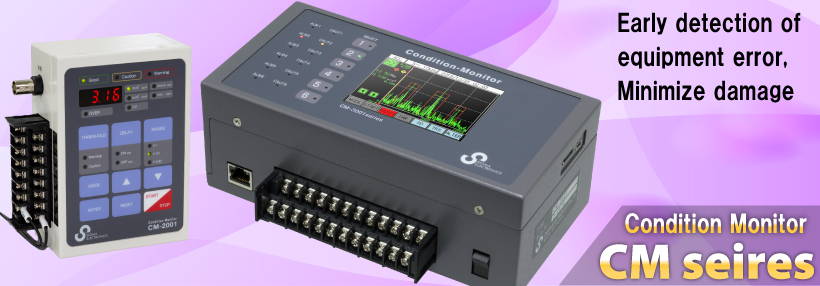

6ch switching monitor
Monitoring while sequentially switching sensors of up to 6 channels
Switching timing can be set arbitrarily
Abundant monitoring items
・Overall vibration monitoring
・Frequency band monitoring -Optional
・Unbalance vibration monitoring -Optional
Up to 6 threshold monitors
Up to 6 thresholds can be set regardless of the number of channels
Threshold automatic setting
Automatically sets the average / maximum value within the set time as the threshold value
Remote control
Equipped with a LAN port, it supports online monitoring using a PC
Data log
Automatically save measurement data to microSD card
Balancing function -Optional
If it has an influence coefficient, the balance calculation result is displayed immediately from the measured value of the unbalanced vibration monitoring.
If it does not have an influence coefficient, the measured value of unbalanced vibration monitoring is used as the initial measured value of the balance calculation.
Efficient balancing is possible.
| Specification | CM-3001 | |
|---|---|---|

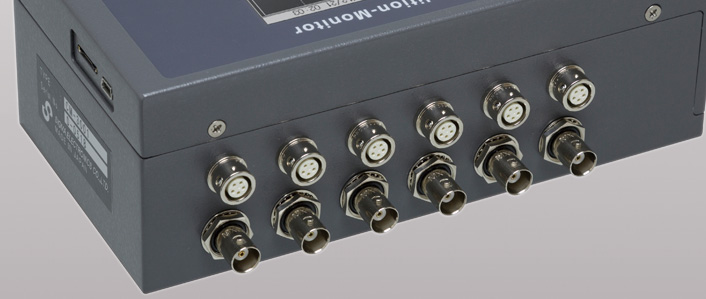

| Vibration input channels | 1 ~ 6ch *Select at the time of purchase | |
| Speed input channels | 0 ~ 6ch *Select at the time of purchase | |
| Vibration value resolution | Acc.P：1.3% of vibration measurement range | |
| Monitor mode | 【Standard】 【Optional】 |
OverAll vibration Freq. band, Unbalance vibration |
| Signal input | Accelerometer with built-in amplifer (CCLD 2mA/DC24V for sensor) | |
| Filter | 【HPF】 【LPF】 |
3Hz / 10Hz / 1kHz Cutoff characteristics：-24dB/oct 200Hz / 1kHz / 5kHz / 20kHz Cutoff characteristics：-24dB/oct Scope of application : OverAll vibration, Freq. band, Timewave form |
| Alarm | Upper limit 2 steps : Caution / Warning Thresholds can be set arbitrarily. Corresponding relay contact turns ON in case of alarm. Display unit shows alarm type and status. |
|
| Alarm delay function |
0 ~ 99s (In 1 sec. increments) Immediate alarm when set to 0 sec. An abnormality is detected when the vibration value exceeding the threshold value continues for more than a set period of time. Prevents false detection due to sudden disturbance vibration. |
|
| Input abnormality detection |
Detects sensor disconnection or short circuit and reports an error *Only when a sensor with built-in amplifier is selected |
|
| Alarm return method | Return by touch panel operation or input from external I/O | |
| Automatic threshold setting | Automatic threshold setting relative to normal vibration values | |
| Setting Data Switching | Automatic / Manual / Remotely switchable | |
| Display |
3.5inch color LCD LED lamp (Display of currently selected setting data number and alarm status) |
|
| Panel interface | Touch panel, Swiches for setting data selection | |
| Meas. Value Detection Circuit | Digtal processing method | |
| External I/O |
Input : Photo coupler receiver / Item : Monitor start, Alarm reset / Action : On by contact short circuit Output : 1a contact / Item: Monitoring, Caution, Alarm |
|
| USB port | USB mini-B | |
| microSD card slot | Support up to microSD HC (Card not included) | |
| LAN port | Capable of data acquisition and equipment operation via network (Optional) | |
| Power supply | DC24V ±10％, 0.3A | |
| Environment |
Temperature : -5 ~ 50℃ (Non-condensing) Humidity：20 ~ 85%RH *Only body |
|
| Dimension (mm) | 196(W) × 100(D) × 72(H) | |
| Weight | 1.2kg | |
