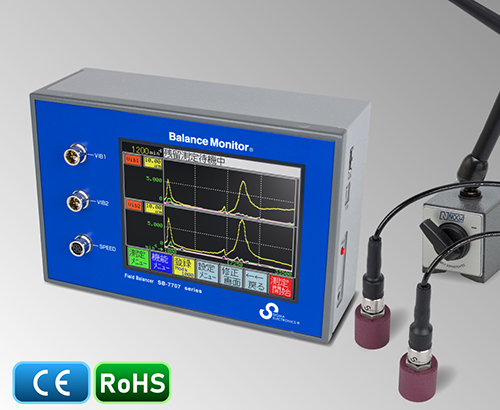

SB-7707R series is the unique to defuse 3D(X,Y,Z) vibrations by “Multi-speed Multi-plane Balancing Algorithm” for preventing vibration at wide speed range of flexible rotor with higher order of bending modes.
•Rechargeable battery model is available.

•Variable-speed Spindle of Machining Center, Textile and spinning machines, Tapping center, etc.
•NC Lathe, High-speed Die Machinery, High-speed Slicer, Dicing Saw, Internal Grinder, Woodworking Machinery, Crusher, Blower, Pump, Compressor, etc.
•Most of precision grinder as Surface grinder, Forming grinder, Centerless grinder, Cylindrical grinder (-optional)

≪Balancing function≫
　・Multi-speed balancing
　・Fixed-speed balancing
　・Grinder balancing *Optional
≪Analysis function≫
　・Harmonic vibration analysis
　・Unbalance vibration analysis
　・Overall vibration analysis
　・FFT and Bearing diagnosis
　・Time waveform

Features

For balancing of flexible and rigid rotors.

•As increasing rotational speed and downsizing of machinery, relative stiffness becomes lower and lower. It causes critical speed will exist in operating speed range.
•Multi-speed multi-plane balancing method provides to defuse vibration at all operational rotating speed range.
Conventional constant speed balancing function is available.

The troublesome work of adjusting the mass of the correction weight is reduced　new!

Uses up to 8 levels of correcting mass registered in advance to output the optimum component correction results.
Balancing process will become more efficient.

OK/NG judgment function according to JIS B 0905　new!

The measured value and the permissible value are compared and the OK/NG judgment is displayed.

Either the charge type or CCLD type can be selected for the vibration sensor　new!

In addition to the conventional charge type vibration sensor, CCLD type vibration sensor can be selected.
In an environment where the cable is long and easy to sway, the CCLD type vibration sensor with less cable noise is suitable.

Equipped with FFT analyzer as standard

Equipped with basic frequency analysis and bearing diagnostic functions as standard.

Vibration analysis functions

•Unbalance vibration monitoring •Harmonic analysis •Overall amplitude monitoring

Lissajous display function

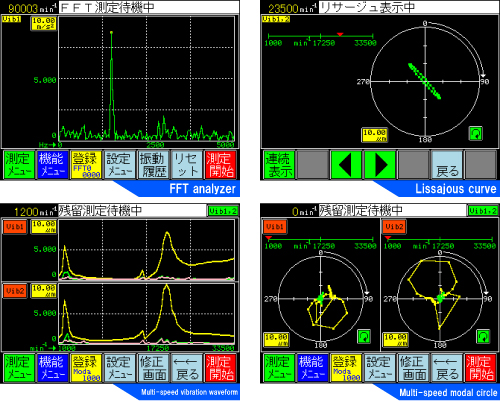

•Lissajous at each rotational speed can be displayed continuously.
•Locus of shaft center can be observed easily.

Documentation and archiving

With our utility software, the measurement results can now be transferred directly onto your PC as CSV files and MS-Excel reports.
•Measurement data can be stored in USB memory.
•Measurement data can be printed out with mechanical dot printer. (-optional)
•Screenshots can be stored in microSD memory or transferred to PC.

Unbalance correction by balance weights arrangement -optional

•Unbalance can be corrected by arranging 2 or 3 balance weights on the circumference. This method is popular for balancing of grinding wheels.
•If this method is applied to general industrial machinery, balance correction will be easily done only by rearrangement of balance weights, weight selection and/or fabrication is not needed.
•SB-7707 series can be applied 1 plane(G) or 2 plane(GW) balancing.

Options

•Unbalance correction by balance weights arrangement
•Internal Printer
•Vibration Channel
•Vibration Sensor for multi-plane measurement
