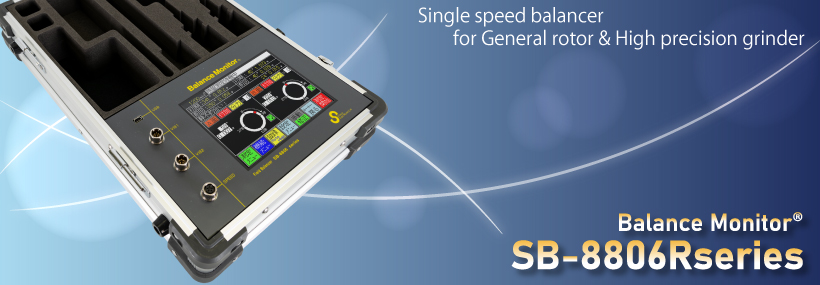

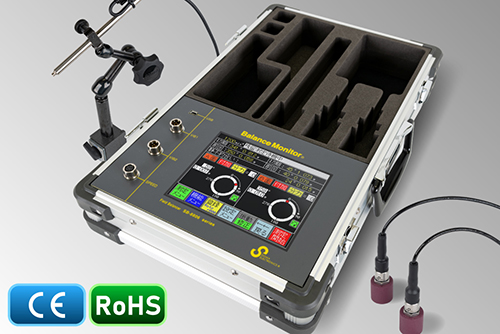

Best selling product proud of easy use and high accuracy, compact size and low cost. Performs balancing at any fixed rotation speed.

•NC Lathe, High-speed Die Machinery, High-speed Slicer, Dicing Saw, Internal Grinder, Woodworking Machinery, Crusher, Blower, Pump, Compressor, etc.
•Most of precision grinder as Surface grinder, Forming grinder, Centerless grinder, Cylindrical grinder (-optional)

≪Balancing function≫
　・Fixed-speed balancing
　・Grinder balancing *Optional
≪Analysis function≫
　・Harmonic vibration analysis
　・Unbalance vibration analysis
　・Overall vibration analysis
　・FFT and Bearing diagnosis & Time waveform *Optional

Features

High accuracy and efficient 1 to 4 plane balancing

•Field balancing at a fixed rotational speed
•Measuring response is 2x fast by 2channel simultaneous measurement. (Compared to Sigma’s products)
•Resolution of vibration is 0.001µm up to 400,000min^–1.

The troublesome work of adjusting the mass of the correction weight is reduced　new!

Uses up to 8 levels of correcting mass registered in advance to output the optimum component correction results.
Balancing process will become more efficient.

OK/NG judgment function according to JIS B 0905　new!

The measured value and the permissible value are compared and the OK/NG judgment is displayed.

Either the charge type or CCLD type can be selected for the vibration sensor　new!

In addition to the conventional charge type vibration sensor, CCLD type vibration sensor can be selected.
In an environment where the cable is long and easy to sway, the CCLD type vibration sensor with less cable noise is suitable.

Vibration analysis functions

•Unbalance vibration monitoring
•Harmonic analysis
•Overall amplitude monitoring

Documentation and archiving

With our utility software, the measurement results can now be transferred directly onto your PC as CSV files and MS-Excel reports.
•Measurement data can be stored in USB memory
•Screenshots can be stored in microSD memory or transferred to PC.

Unbalance correction by balance weights arrangement -optional

•Unbalance can be corrected by arranging 2 or 3 balance weights on the circumference. This method is popular for balancing of grinding wheels.
•If this method is applied to general industrial machinery, balance correction will be easily done only by rearrangement of balance weights, weight selection and/or fabrication is not needed.
•SB-8806R series can be applied 1 plane(G) or 2 plane(GW) balancing.

Options

•FFT Analyzer
•Vibration Sensor for multi-plane measurement
