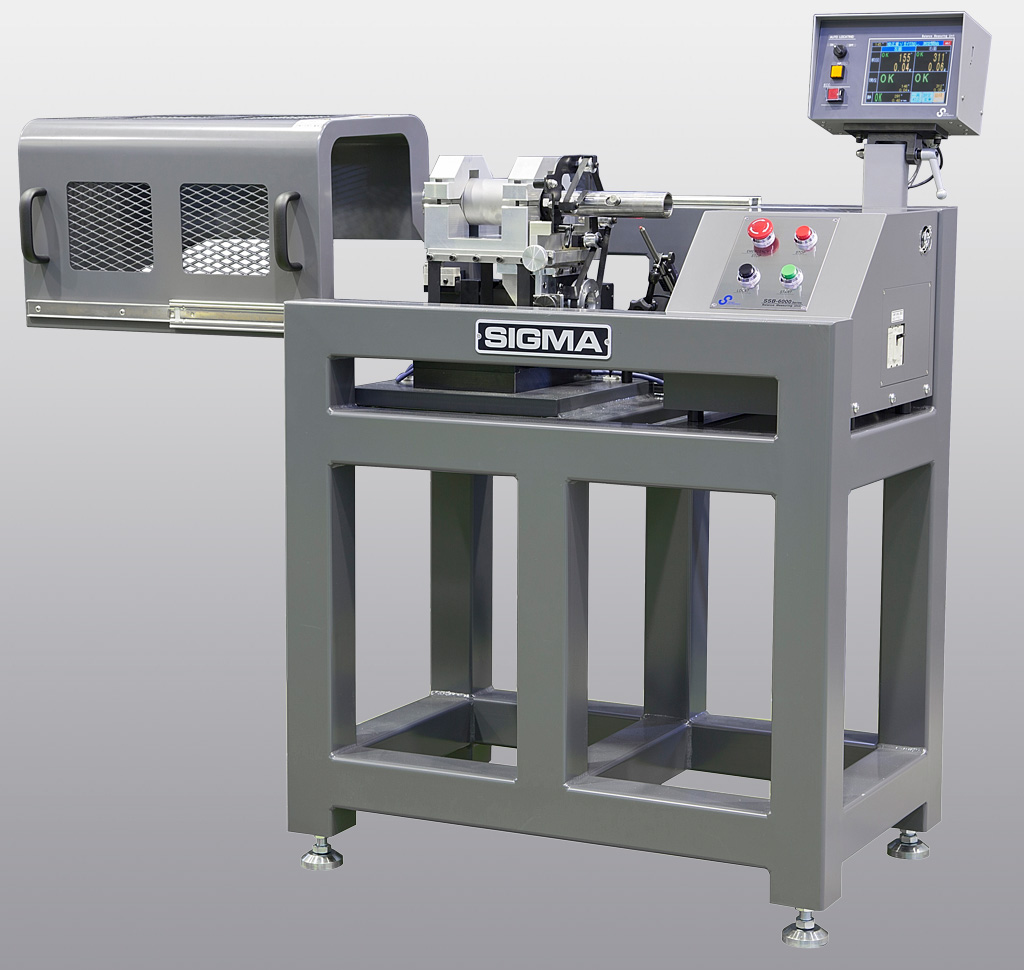

SSB-6010B

Horizontal 1 to 4 plane Balancing Machine
SSB-6010B

This machine is suitable for bearing mounted rotors. Outer ring of bearing is supported, and then high-precision measurement can be obtained.

  • Balancing plane : 1 and 2 (up to 4 -optional)
  • Workpiece Mass : 10kg max.
  • Span across Bearings :160mm max.
  • Belt drive system :Upward-Tangential
  • Min. Achievable Unbalance :0.1 µm

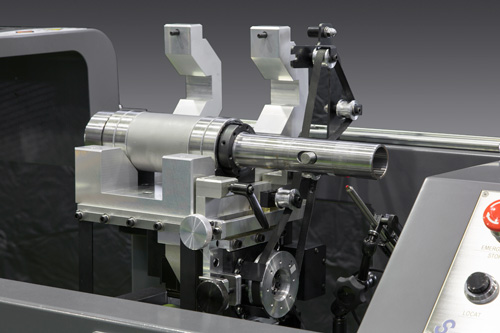

work

Rotor shafts of spindle, Turbine rotors of jet engine, etc.

Features

  • Realize balancing of flexible rotors by "Multi-speed Multi-plane Balancing Algorithm"
  • Vibration at all rotational speed range can be defused by unique "Multi-speed Multi-plane Balancing Algorithm".

  • Expand measuring planes to 4 planes
  • Conventional balancing planes is up to 2 planes.
    However, in case performing 2-plane balancing of rotary part of high speed rotary machine, check structure and shape of rotary part and select proper No. of Correction plane. Otherwise, it may cause higher order vibration of flexural mode under high speed rotation.
    Sigma’s horizontal balancing machine expands No. of Correction plane until 4 planes at maximum, selecting proper No. of Correction plane freely. So the above mentioned problem can be solved easily.

  • Touch screen operation
  • Small foot print

Specifications: SSB-6010B

Model SSB-6010B
Workpiece Max. Mass 10.0kg
Span across Bearings 160mm max.
Max. rotor length 390mm
Mechanical unit Belt drive system Upward-Tangential
Motor AC servo motor, 400W
Balancing speed 200 to 4,500min-1 (Depending on outer diameter of workpiece)
Bearing support system Soft type
Angle of unbalance index Automatic indexing
Between bearings method V block bearing
Safety cover Sliding door with LS -optional
Vibration sensor Optical touchless displacement sensor
Rotation sensor Fiber sensor
Measuring unit Min. Achievable Unbalance 0.1 µm
Balancing plane 1 and 2 (up to 4 is available with option)
Balancing method Multi-speed multi-plane, Fix-speed multi-plane
Angle of unbalance index Automatic indexing
Graphic display 5.7" TFT color LCD with touch screen
Min. unbalance indication 0.01mg
Indication mode Polar coordinates and (3 to 24) components of unbalance vector
(add or remove of unbalance correction masses are selectable)
No. of stored work data 30 data
Judgment of measured result Judgment with set limit value
Data transfer Measured data can be transferred to PC
Others Power supply 3-phase AC200V 50/60Hz
Dimensions 810(W) × 625(L) × 1,200(H)mm
Mass Approx. 200kg
