SSB-6030A

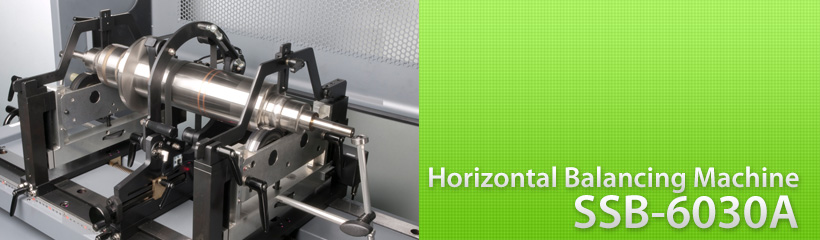

Horizontal 1 to 4 plane Balancing Machine

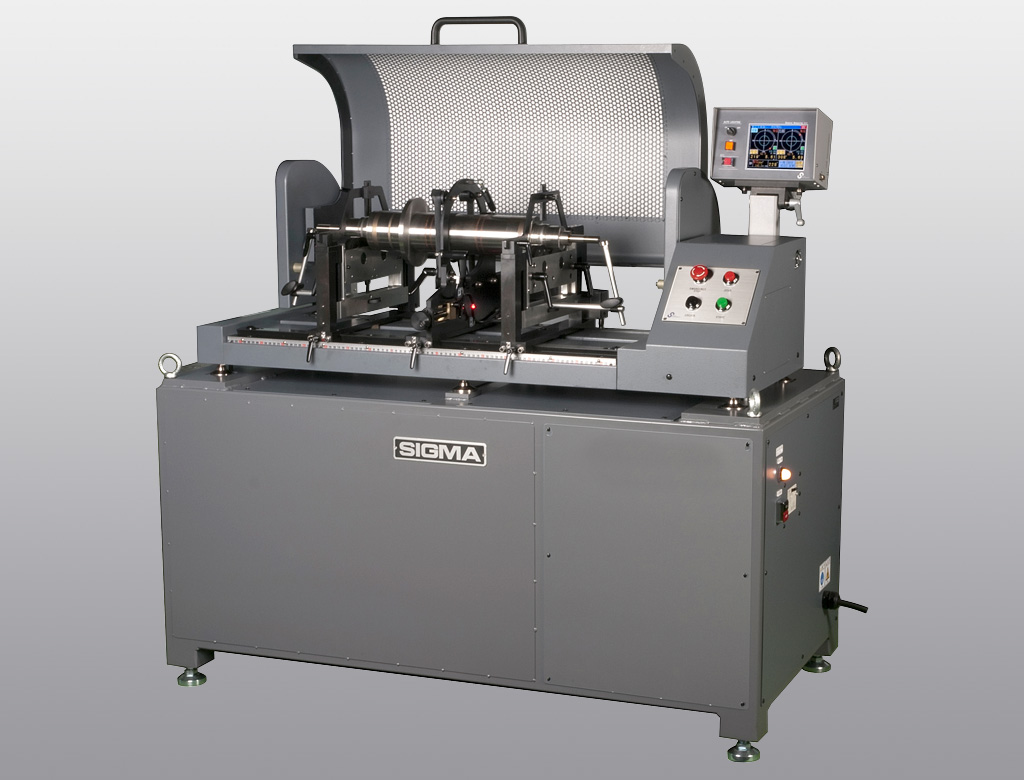

SSB-6030A

Flexible rotors i.e. turbo blowers can be balanced efficiently.

  • Balancing plane : 1 and 2 (up to 4 -optional)
  • Workpiece Mass : 30kg max.
  • Rotor dia.: ø250mm max.
  • Belt drive dia.: ø20 to 140mm
  • Journal dia. : ø15 to 70mm
  • Span across Bearings :150 to 600mm
  • Belt drive system :Upward-Tangential
  • Min. Achievable Unbalance :0.1 µm
work

High speed spindles, Turbo blowers, Cross flow fan, Drive shafts etc.

Features

  • Realize balancing of flexible rotors by "Multi-speed Multi-plane Balancing Algorithm"
  • Vibration at all rotational speed range can be defused by unique "Multi-speed Multi-plane Balancing Algorithm".

  • Expand measuring planes to 4 planes
  • Conventional balancing planes is up to 2 planes.
    Conventional balancing planes is up to 2 planes.
    However, in case performing 2-plane balancing of rotary part of high speed rotary machine, check structure and shape of rotary part and select proper No. of Correction plane. Otherwise, it may cause higher order vibration of flexural mode under high speed rotation.
    Sigma’s horizontal balancing machine expands No. of Correction plane until 4 planes at maximum, selecting proper No. of Correction plane freely. So the above mentioned problem can be solved easily.

  • Touch screen operation
  • Small foot print

Specifications: SSB-6030A

Model SSB-6030A
Workpiece Max. Mass 30kg
Max. rotor Diameter ø250mm
Diameter for belt drive ø20 to ø140mm
Journal diameter ø15 to ø70mm
Span across Bearings 150 to 600mm
Mechanical unit Belt drive system Upward-Tangential
Motor AC servo motor, 750W
Balancing speed 500 to 3,000min-1 (Depending on outer diameter of workpiece)
Bearing support system Soft type
Angle of unbalance index Automatic indexing
Between bearings method Roller bearing
Measuring unit Min. Achievable Unbalance 0.1 µm
Balancing plane 1 and 2 (up to 4 is available with option)
Graphic display 5.7" TFT color LCD with touch screen
Min. unbalance indication 0.01mg
Indication mode Polar coordinates and (3 to 99) components of unbalance vector
(add or remove of unbalance correction masses are selectable)
No. of stored work data 50 data (No limitation when use with USB memory)
Judgment of measured result Judgment with set limit value
Data transfer Measured data can be transferred to PC or stored USB memory -optional
Others Power supply 3-phase AC100V 50/60Hz
Dimensions 1,300(W) × 750(L) × 1,300(H)mm
Mass Approx. 365kg (Including cover and base frame)
